Description:Provides high-performance I/O expansion and switching functions between a PCIe upstream port and five downstream ports or peer-to-peer switching between downstream ports.
Renesas provides a reference design guide for PCB layout and thermal management in their application notes. It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
Renesas recommends using a power management IC (PMIC) specifically designed for the 89HPES24T6G2ZCALG. The PMIC should be able to provide the required voltage rails, power sequencing, and voltage regulation. Renesas provides guidance on power sequencing and voltage regulation in their application notes and design guides.
The recommended operating conditions are specified in the datasheet, but it's essential to consider factors like temperature, humidity, and power supply quality. Ensure reliable operation by following Renesas' guidelines for operating conditions, and implementing proper thermal management, power sequencing, and voltage regulation.
Renesas provides debugging tools and software, such as the Renesas Debug Tool, to help troubleshoot and debug issues. Additionally, consult the datasheet, application notes, and design guides for troubleshooting guidelines and common pitfalls to avoid.
Renesas offers various development boards and evaluation kits for the 89HPES24T6G2ZCALG, which provide a platform for evaluating and developing applications. These kits usually include documentation, software, and hardware resources to help get started with development.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
89HPES24T6G2ZCALG Overview

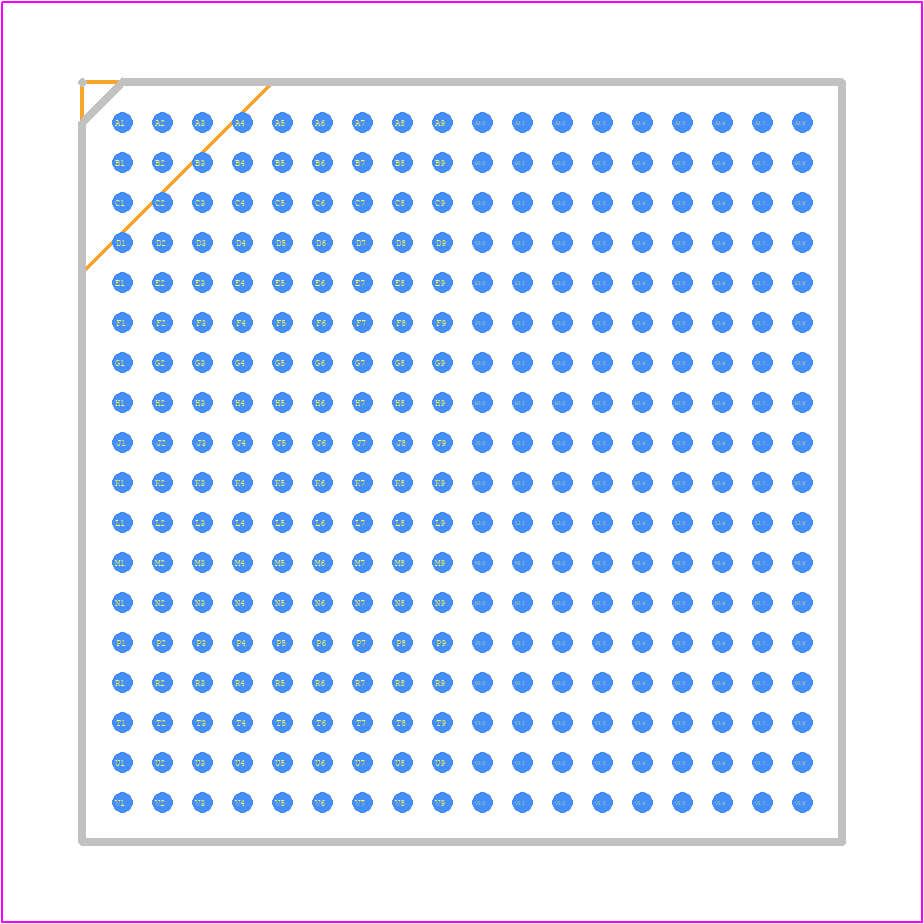

Use the download button to access the 89HPES24T6G2ZCALG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 89HPE,
or try a keyword search, such as Bus Controllers
