89HPES3T3ZBBCGI8 - Renesas Electronics

Description: Provides high-performance I/O expansion and switching functions between a PCIe upstream port and two downstream ports or peer-to-peer switching between downstream ports.

Download 89HPES3T3ZBBCGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
89HPES3T3ZBBCGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

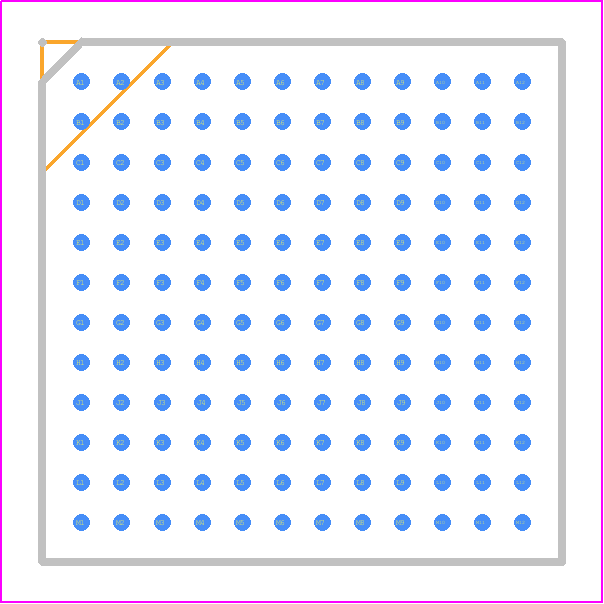

89HPES3T3ZBBCGI8 - Renesas Electronics PCB footprint - BGA - BGA - 144-LEAD BGA [13 X 13]
click to zoom
3D Models
89HPES3T3ZBBCGI8 - Renesas Electronics - 3D model - BGA - 144-LEAD BGA [13 X 13]
click to zoom

89HPES3T3ZBBCGI8 Details

  • Manufacturer Part Number:

    89HPES3T3ZBBCGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CABGA

  • Package Description:

    CABGA-144

  • Pin Count:

    144

  • Manufacturer Package Code:

    BCG144

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Bus Compatibility:

    PCI; SMBUS

  • Clock Frequency-Max:

    100 MHz

  • Drive Interface Standard:

    IEEE 1149.1

  • JESD-30 Code:

    S-PBGA-B144

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA144,12X12,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

89HPES3T3ZBBCGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
  • Renesas recommends following the power sequencing guidelines outlined in the datasheet, which involves powering up the VCC and VCCIO pins in a specific order. Additionally, Renesas provides a power sequencing application note that provides more detailed information and examples.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1uF to 1uF, placed as close as possible to the power pins. The datasheet provides more detailed information on decoupling capacitor selection and placement.
  • Renesas provides a troubleshooting guide in their application note documents, which covers common issues and their solutions. Additionally, Renesas offers technical support through their website and support teams.
  • The 89HPES3T3ZBBCGI8 is rated for operation in the industrial temperature range (-40°C to 85°C) and is designed to meet various environmental standards, including RoHS and REACH. The datasheet provides more detailed information on operating conditions and environmental compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

89HPES3T3ZBBCGI8 Overview

Use the download button to access the 89HPES3T3ZBBCGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 89HPE, or try a keyword search, such as Bus Controllers
