89HPES4T4G2ZCALGI - Renesas Electronics

89HPES4T4G2ZCALGI Details

• Manufacturer Part Number:

  89HPES4T4G2ZCALGI

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  FCBGA

• Package Description:

  BGA-324

• Pin Count:

  324

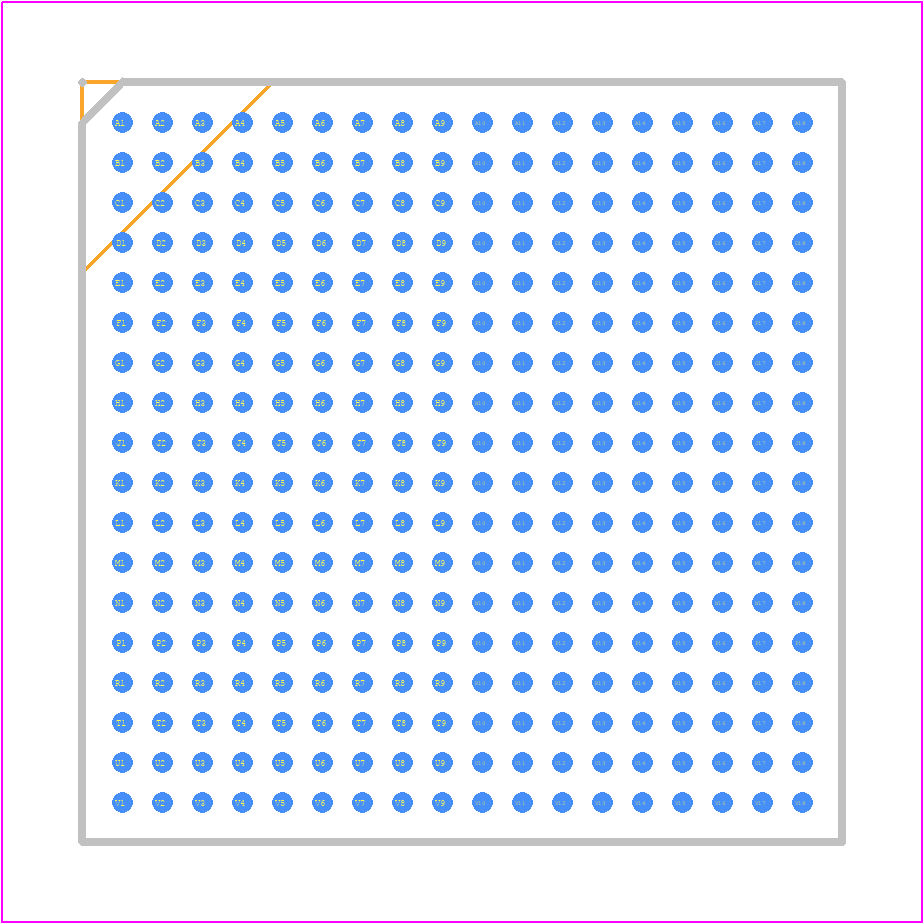

• Manufacturer Package Code:

  ALG324

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Bus Compatibility:

  PCI

• Clock Frequency-Max:

  100 MHz

• Data Transfer Rate-Max:

  625 MBps

• JESD-30 Code:

  S-PBGA-B324

• JESD-609 Code:

  e1

• Length:

  19 mm

• Moisture Sensitivity Level:

  4

• Number of Terminals:

  324

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA324,18X18,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.42 mm

• Supply Voltage-Max:

  1.1 V

• Supply Voltage-Min:

  0.9 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  19 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, PCI
