Description:Provides 64 PCIe lanes and 16 ports of high-performance, deterministic system interconnect switching. All ports receive full line rate, non-blocking throughput for multiple traffic flows regardless of switch loading.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or application notes, which provide detailed guidelines for power-up and power-down sequences.
The recommended settings for the internal voltage regulators can be found in the device's datasheet or user manual. Renesas provides guidelines for setting the voltage regulator outputs, including voltage levels, current limits, and stability considerations.
Renesas provides power-saving modes and techniques in the device's datasheet and user manual. These include dynamic voltage and frequency scaling, clock gating, and power gating. Additionally, Renesas offers software development kits (SDKs) and tools to help optimize power consumption.
Renesas provides thermal design guidelines in their application notes, which include thermal resistance values, junction-to-case thermal resistance, and recommended thermal interface materials. Engineers should also consider thermal simulation tools and thermal analysis software to optimize their design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
89HPES64H16ZABRI Overview

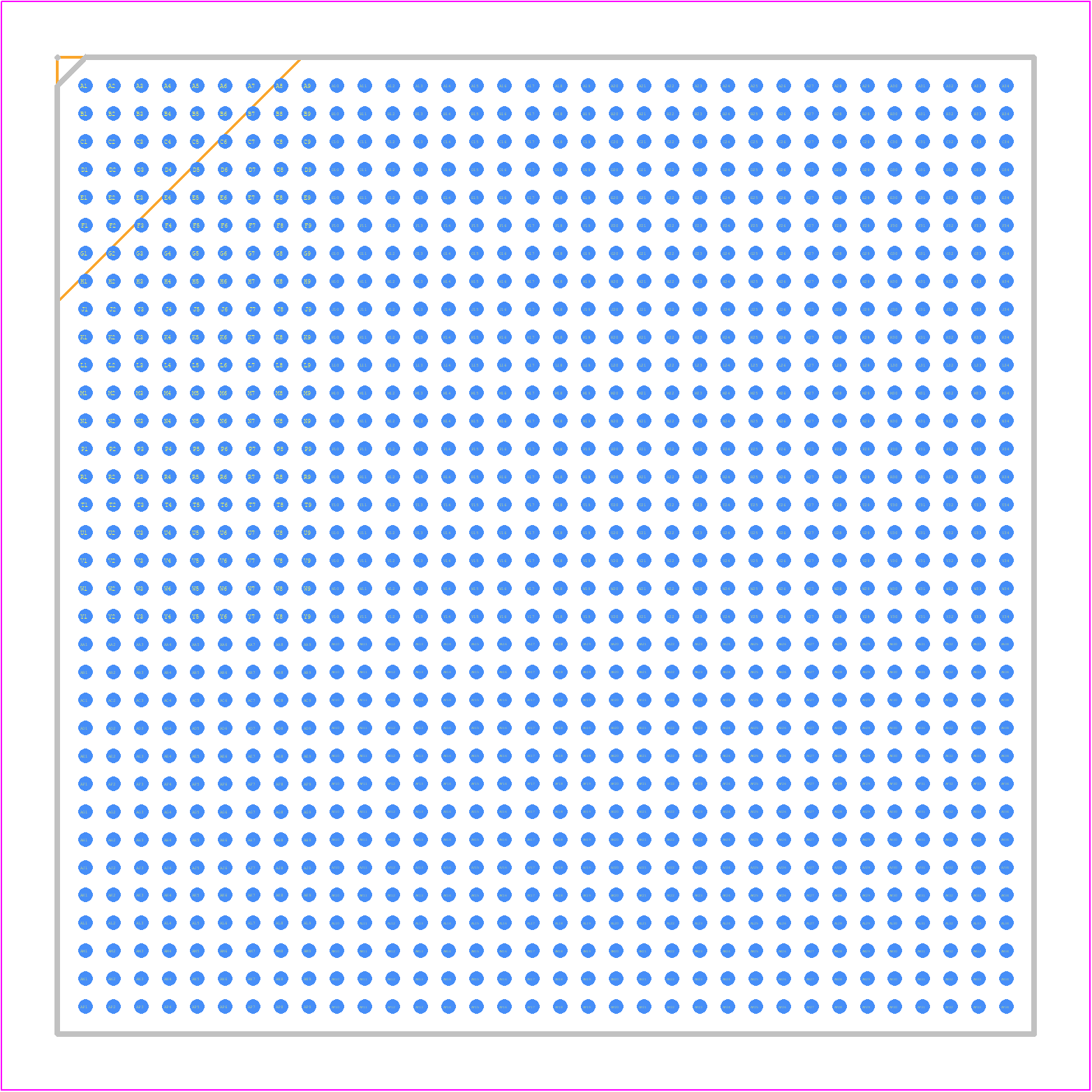

Use the download button to access the 89HPES64H16ZABRI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 89HPE,
or try a keyword search, such as Bus Controllers
