8A2022-Z - Nidec Copal

Description: Toggle Switches DPDT, ON-OFF-ON, 10.5mm toggle, 1/4"-40 threaded bushing, straight PC terminals, 6A @ 125V AC

Download 8A2022-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8A2022-Z - Nidec Copal - PCB symbol
click to zoom
PCB Footprints

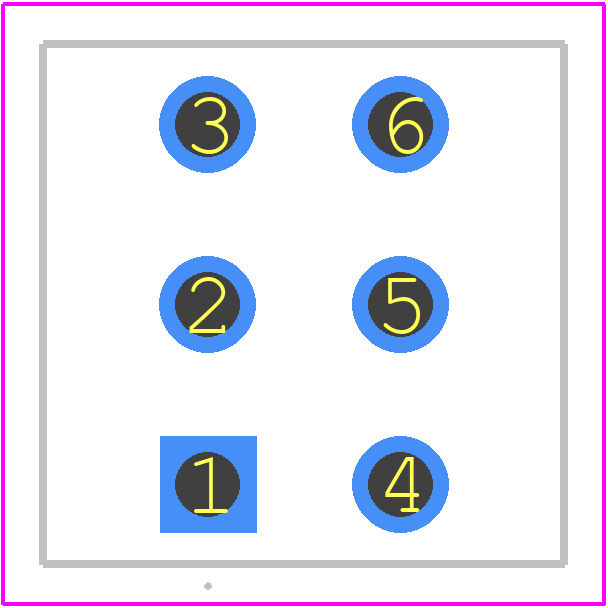

8A2022-Z - Nidec Copal PCB footprint - Other - Other - 8A2022-Z-1
click to zoom
3D Models
8A2022-Z - Nidec Copal - 3D model - Other - 8A2022-Z-1
click to zoom

8A2022-Z Details

  • Manufacturer Part Number:

    8A2022-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Nidec Copal Electronics Corporation

  • Switch Type:

    TOGGLE SWITCH
