- Part Number 8D2-07LD
- Manufacturer Semitec
- Pin Count 2
- Part Category Thermistor
- Package Category Other

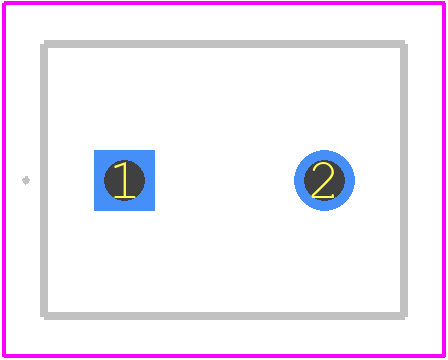

- Footprint Name Other - 8D2-07LD-1
- Released Date Sep 29, 2023
- Last Modified Date Sep 30, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
8D2-07LD Details
-
Manufacturer Part Number:
8D2-07LD
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
RADIAL LEADED
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8533.40.80.70
-
Manufacturer:
SEMITEC Corporation
-
YTEOL:
6
-
Mounting Feature:
THROUGH HOLE MOUNT
-
Number of Terminals:
2
8D2-07LD Frequently Asked Questions (FAQs)
-
The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent thermal damage to the thermistor.
-
Yes, the 8D2-07LD is designed to operate in high-humidity environments, but it's recommended to take precautions to prevent moisture ingress, such as applying a conformal coating or using a moisture-resistant packaging.
-
The self-heating effect of the 8D2-07LD is typically around 1-2°C (1.8-3.6°F) at a current of 1mA, but this can vary depending on the specific application and operating conditions.
-
Yes, the 8D2-07LD has a high accuracy of ±0.2°C (±0.36°F) over the temperature range of -20°C to 100°C (-4°F to 212°F), making it suitable for high-accuracy temperature measurement applications.
-
The recommended wire size is 0.3mm to 0.5mm (AWG 22 to AWG 20) and the recommended wire material is copper or a copper alloy with a insulation rating of at least 150°C (302°F).
