8DBL-03-006 - TE Connectivity

Description: 3 Position Barrier Strip, Tri-Barrier, Double Printed Circuit Pin Bottom Termination, Wire-to-Board, 11.1 mm [.438 in] Centerline, BUCHANAN 8 Series

Download 8DBL-03-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8DBL-03-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

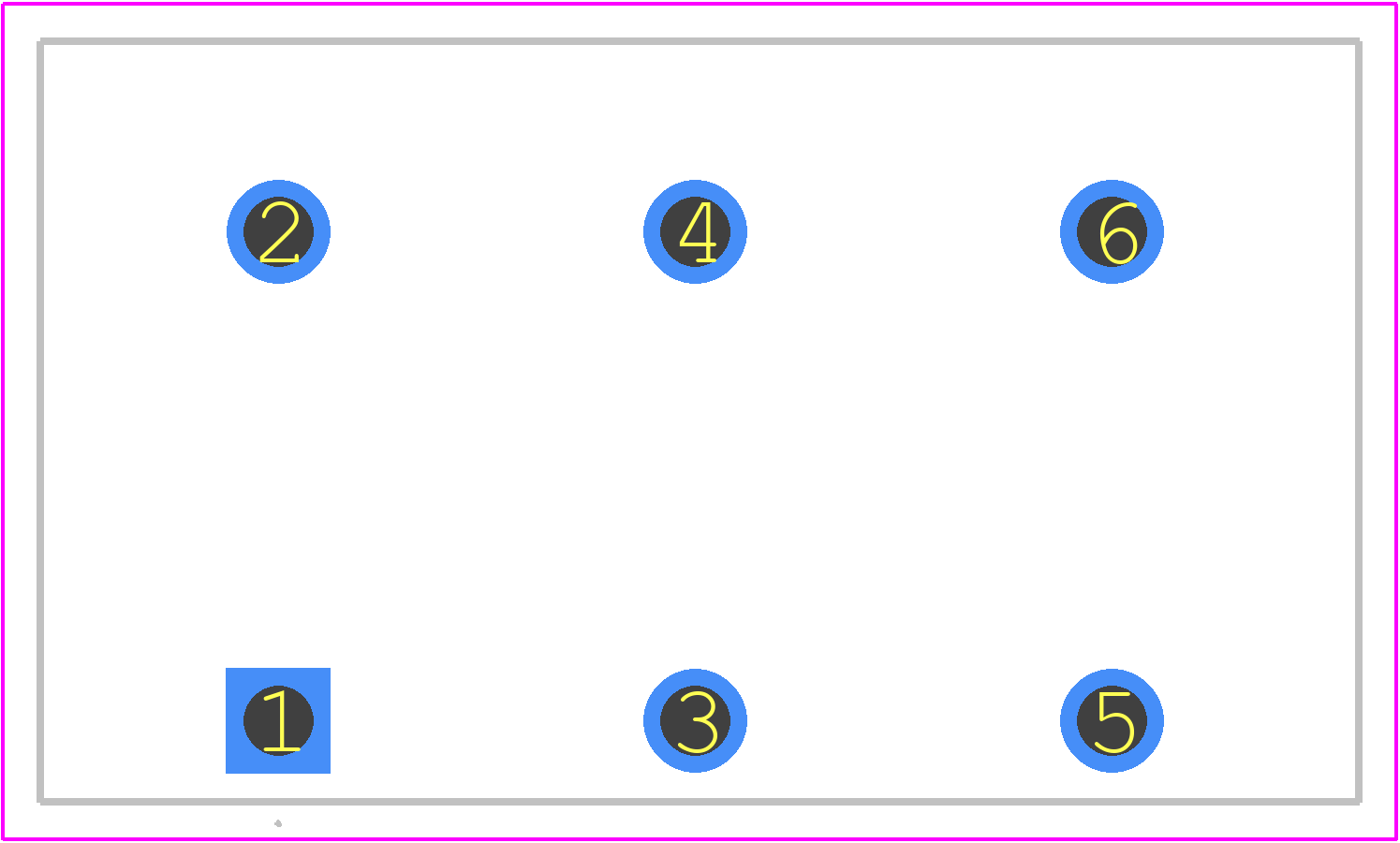

8DBL-03-006 - TE Connectivity PCB footprint - Other - Other - 8DBL-03-006-1
click to zoom
3D Models
8DBL-03-006 - TE Connectivity - 3D model - Other - 8DBL-03-006-1
click to zoom

8DBL-03-006 Details

  • Manufacturer Part Number:

    8DBL-03-006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    23 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.24

  • Additional Feature:

    STANDARD: UL94V-0, POLYPROPYLENE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    30 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    5.26 mm2

  • Wire Gauge:

    10 AWG

8DBL-03-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of 8DBL-03-006 is 0.5-0.7 Nm (5-7 in-lbs).
  • Yes, the 8DBL-03-006 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with high mechanical stress.
  • The 8DBL-03-006 has a IP67 rating, which means it is protected against dust and water ingress. However, it's recommended to use additional protection measures, such as conformal coating or potting, to ensure reliable performance in harsh outdoor environments.
  • The 8DBL-03-006 has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications, including those in extreme temperatures.
  • While the 8DBL-03-006 is designed for 24-18 AWG wire sizes, it can accommodate smaller wire sizes with the use of wire adapters or terminals. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8DBL-03-006 Overview

Use the download button to access the 8DBL-03-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8DBL-, or try a keyword search, such as Terminals and Terminal Blocks
