8G1016-Z - Nidec Copal

8G1016-Z Details

• Manufacturer Part Number:

  8G1016-Z

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  Nidec Copal Electronics Corporation

• YTEOL:

  7

• Actuator Angle:

  24 deg

• Actuator Length:

  0.268 inch

• Actuator Type:

  SHORT TOGGLE

• Additional Feature:

  PANEL MOUNTABLE

• Body Breadth:

  18.18 mm

• Body Height:

  13 mm

• Body Length or Diameter:

  8 mm

• Bushing Diameter:

  0.236 inch

• Bushing Length:

  0.236 inch

• Center Contact Material:

  BRASS

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  6A@125VAC

• Contact Current(AC)-Max:

  6 A

• Contact Current(DC)-Max:

  4 A

• Contact (DC) Max Rating R Load:

  4A@30VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  SILVER

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

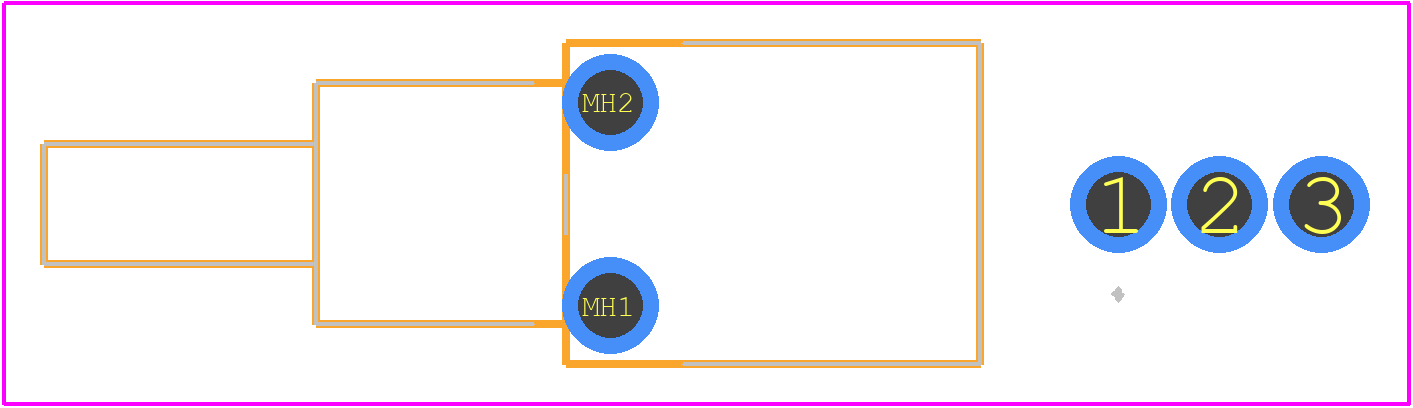

• PCB Hole Count:

  3

• Packing Method:

  BAG

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  HAND

• Surface Mount:

  NO

• Switch Action:

  ALTERNATE

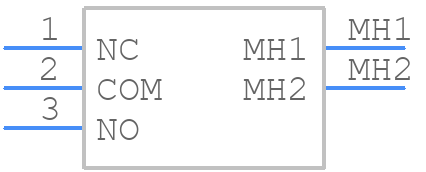

• Switch Function:

  SPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Length:

  0.106 inch

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
