Coto Technology provides a recommended PCB layout and land pattern in their application note AN-105, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or an inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay with built-in inrush current limiting.
The maximum switching frequency for the 8L01-24-001 is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit the switching frequency to 1-2 Hz to ensure reliable operation and to prevent overheating.
The 8L01-24-001 has an operating temperature range of -40°C to 85°C. While it can operate in high-temperature environments, it's essential to ensure proper heat dissipation and to derate the relay's current handling capability accordingly.
To ensure clean and reliable contacts, it's recommended to handle the relay by the pins, avoid touching the contacts, and store the relay in a clean, dry environment. If contamination is suspected, use a soft brush or a lint-free cloth to gently clean the contacts.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8L01-24-001 Overview

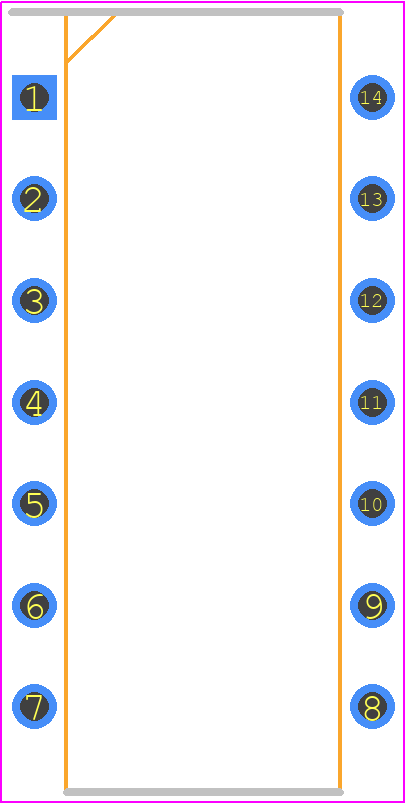

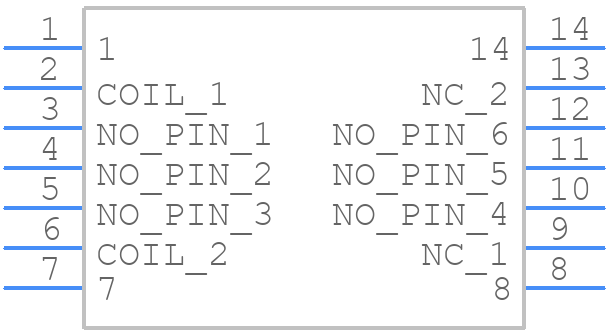

Use the download button to access the 8L01-24-001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8L01-,
or try a keyword search, such as Reed Relays
