8L30210NLGI8 - Renesas Electronics

Description: The 8L30210 is a low skew, 1-to-10 LVCMOS / LVTTL Fanout Buffer. The low impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series or parallel terminated transmission lines. The 8L30210 is characterized at full 3.3V and 2.5V, mixed 3.3V/2.5V, 3.3V/1.8V, 3.3V/1.5V, 2.5V/1.8V and 2.5V/1.5V output operating supply modes. The input clock is selected from two differential clock inputs or a crystal input. The differential input can be wired to accept a single-ended input. The internal oscillator circuit is

Download 8L30210NLGI8 Model

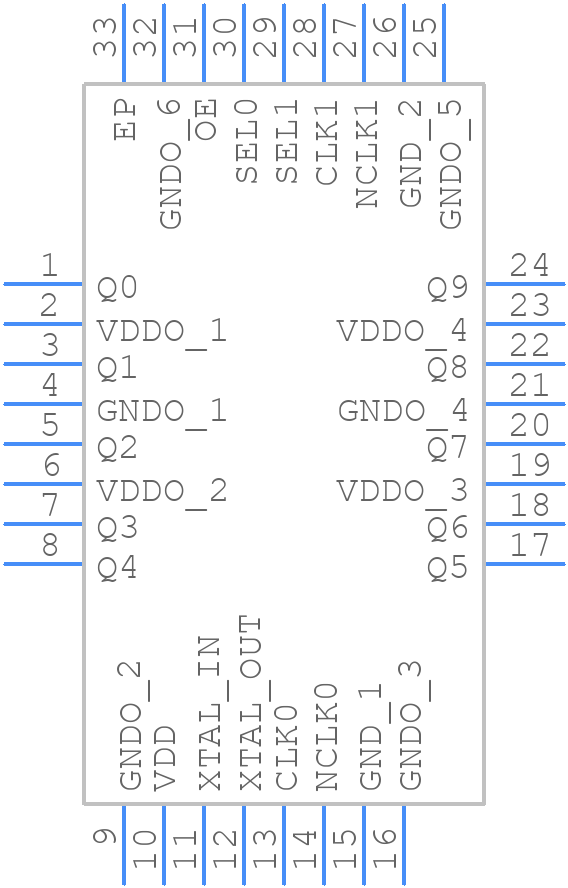

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8L30210NLGI8 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG32P1--
click to zoom
3D Models
8L30210NLGI8 - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG32P1--
click to zoom

8L30210NLGI8 Details

  • Manufacturer Part Number:

    8L30210NLGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    30210

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.0001 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    19 mA

  • Prop. Delay@Nom-Sup:

    3 ns

  • Propagation Delay (tpd):

    5 ns

  • Same Edge Skew-Max (tskwd):

    0.055 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • fmax-Min:

    10 MHz

8L30210NLGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 8L30210NLGI8, which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance. It's available on the Renesas website or through their support channels.
  • Renesas provides a Secure Boot and Firmware Encryption Guide for the 8L30210NLGI8, which outlines the steps to implement secure boot and firmware encryption using the device's built-in security features, such as the Trusted Execution Environment (TEE) and the Advanced Encryption Standard (AES).
  • The internal oscillator of the 8L30210NLGI8 has a typical accuracy of ±1.5% at room temperature. To improve its accuracy, you can use an external crystal oscillator or a high-precision clock source. Additionally, Renesas provides calibration procedures and trimming options to adjust the internal oscillator's frequency.
  • To optimize power consumption, you can use the 8L30210NLGI8's power-saving modes, such as the Low Power Mode (LPM) and the Deep Sleep Mode (DSM). Additionally, you can use the device's power gating feature to turn off unused peripherals and reduce power consumption. Renesas also provides power consumption estimation tools and guidelines to help optimize power consumption.
  • Renesas provides EMC and EMI design guidelines for the 8L30210NLGI8, which include recommendations for PCB layout, component selection, and shielding. Additionally, you should follow the IEC 61000-4-x and CISPR 24 standards for EMC and EMI testing and compliance.
