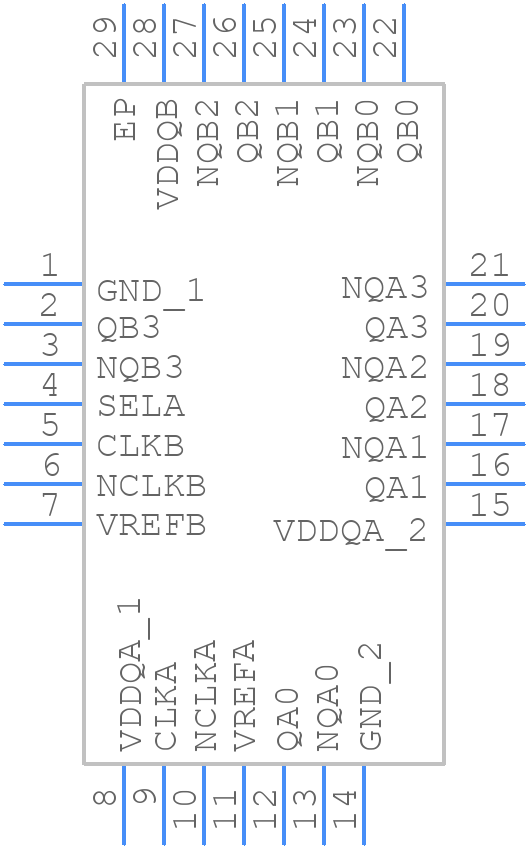

8P34S2104NBGI/W - Renesas Electronics

8P34S2104NBGI/W Details

• Manufacturer Part Number:

  8P34S2104NBGI/W

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  VFQFPN

• Pin Count:

  28

• Manufacturer Package Code:

  NBG28P1

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2020-09-09

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  15

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-XQCC-N28

• JESD-609 Code:

  e3

• Length:

  5 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of True Outputs:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  210 mA

• Prop. Delay@Nom-Sup:

  0.4 ns

• Propagation Delay (tpd):

  0.4 ns

• Same Edge Skew-Max (tskwd):

  0.03 ns

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  1.89 V

• Supply Voltage-Min (Vsup):

  1.71 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
