Description:The 8P34S2104 is a high-performance, low-power, differential dual 1:2 LVDS output, 1.8V/2.5V fanout buffer. The device supports fail-safe operation and is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. Two independent buffer channels are available. Each channel has four low-skew outputs. High isolation between channels minimizes noise coupling. AC characteristics such as propagation delay are matched between channels. Guaranteed output-to-output and part-to-
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
The 8P34S2104NBGI8 has multiple power modes, including low-power mode. To configure the device for low-power mode, refer to the datasheet section on 'Power Management' and follow the recommended register settings. Additionally, consider using the Renesas-provided software development kit (SDK) for guidance on power mode configuration.
The 8P34S2104NBGI8 has a maximum junction temperature (Tj) of 150°C. To ensure proper thermal management, follow the recommended PCB layout guidelines, use thermal vias, and consider using a heat sink or thermal interface material (TIM) if necessary. Also, monitor the device's temperature using the built-in thermal sensor or an external temperature sensor.
For clocking or PLL configuration issues, refer to the datasheet section on 'Clocking' and 'PLL Configuration.' Use Renesas' software development tools, such as the e² studio or IAR Embedded Workbench, to debug and analyze the device's clocking configuration. Additionally, consult the Renesas support forums or contact their technical support team for guidance.
The 8P34S2104NBGI8 is a sensitive electronic component and requires proper ESD protection and handling. Follow standard ESD handling procedures, such as using an ESD wrist strap, ESD mat, or ESD bag. Also, ensure that the device is stored in a static-protective environment and handled with ESD-safe tools.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8P34S2104NBGI8 Overview

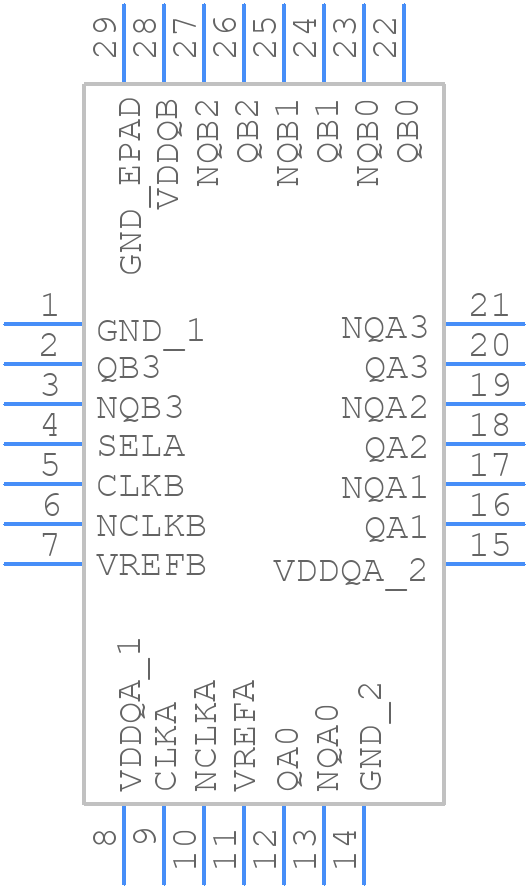

Use the download button to access the 8P34S2104NBGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8P34S,
or try a keyword search, such as Clock Drivers
