8P34S2106AHGI - Renesas Electronics

Description: The 8P34S2106 is a high-performance, low-power, differential dual 1:6 LVDS output 1.8V / 2.5V fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. Two independent buffer channels are available, each channel has six low-skew outputs. High isolation between channels minimizes noise coupling. AC characteristics such as propagation delay are matched between channels. Guaranteed output-to-output and part-to-part skew characteristics make th

Download 8P34S2106AHGI Model

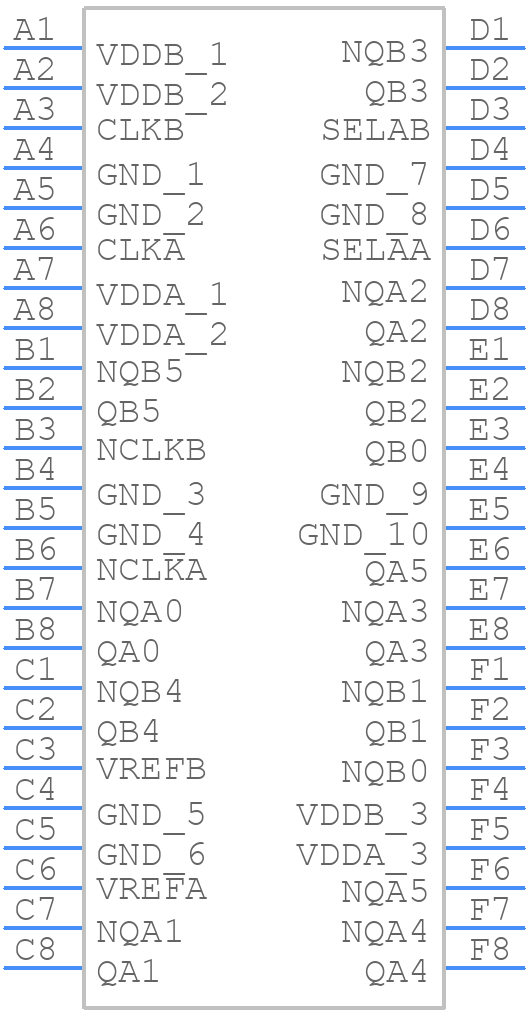

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8P34S2106AHGI - Renesas Electronics PCB footprint - BGA - BGA - HGI48
click to zoom
3D Models
8P34S2106AHGI - Renesas Electronics  - 3D model - BGA - HGI48
click to zoom

8P34S2106AHGI Details

  • Manufacturer Part Number:

    8P34S2106AHGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP

  • Pin Count:

    48

  • Manufacturer Package Code:

    AHG48

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-09-09

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Additional Feature:

    IT ALSO OPERATES AT 2.5V SUPPLY

  • Family:

    8P34

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PBGA-B48

  • JESD-609 Code:

    e1

  • Length:

    3.59 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    48

  • Number of True Outputs:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA48,6X8,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    390 mA

  • Prop. Delay@Nom-Sup:

    0.4 ns

  • Propagation Delay (tpd):

    0.4 ns

  • Same Edge Skew-Max (tskwd):

    0.04 ns

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.04 mm

8P34S2106AHGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
  • The 8P34S2106AHGI is a highly configurable device. To configure the device for a specific clock frequency, refer to the device's programming guide and use the provided software tools (e.g., Renesas Clock Generator Tool) to generate the necessary configuration files and settings.
  • The 8P34S2106AHGI has a high-power dissipation rating. To ensure proper thermal management, use a heat sink, follow the recommended PCB layout guidelines, and consider using thermal interface materials (e.g., thermal tape or thermal grease) to improve heat transfer.
  • The 8P34S2106AHGI has an operating temperature range of -40°C to +85°C. While it can operate in high-temperature environments, it's essential to ensure proper thermal management and consider derating the device's performance at higher temperatures.
  • To troubleshoot issues with the clock output, use a high-speed oscilloscope to verify the clock signal's frequency, amplitude, and jitter. Check the device's configuration settings, power supply voltage, and PCB layout for any potential issues.
