Part Image

8PCV-04-006 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Positions 4 | Number of Rows 1 | Number of Levels 1 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Base Material Copper Alloy | Contact Current Rating (Max) 30 AMP | Dimensions: Wire Size .326 – 5.26 MMSQ | Product Length 46.28 MM | Product Length 1.822 INCH | Wire Size 18 – 10 AWG | Wire Size 22 – 10 AWG | Electrical Character

Download 8PCV-04-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8PCV-04-006 - TE Connectivity - PCB symbol
click to zoom

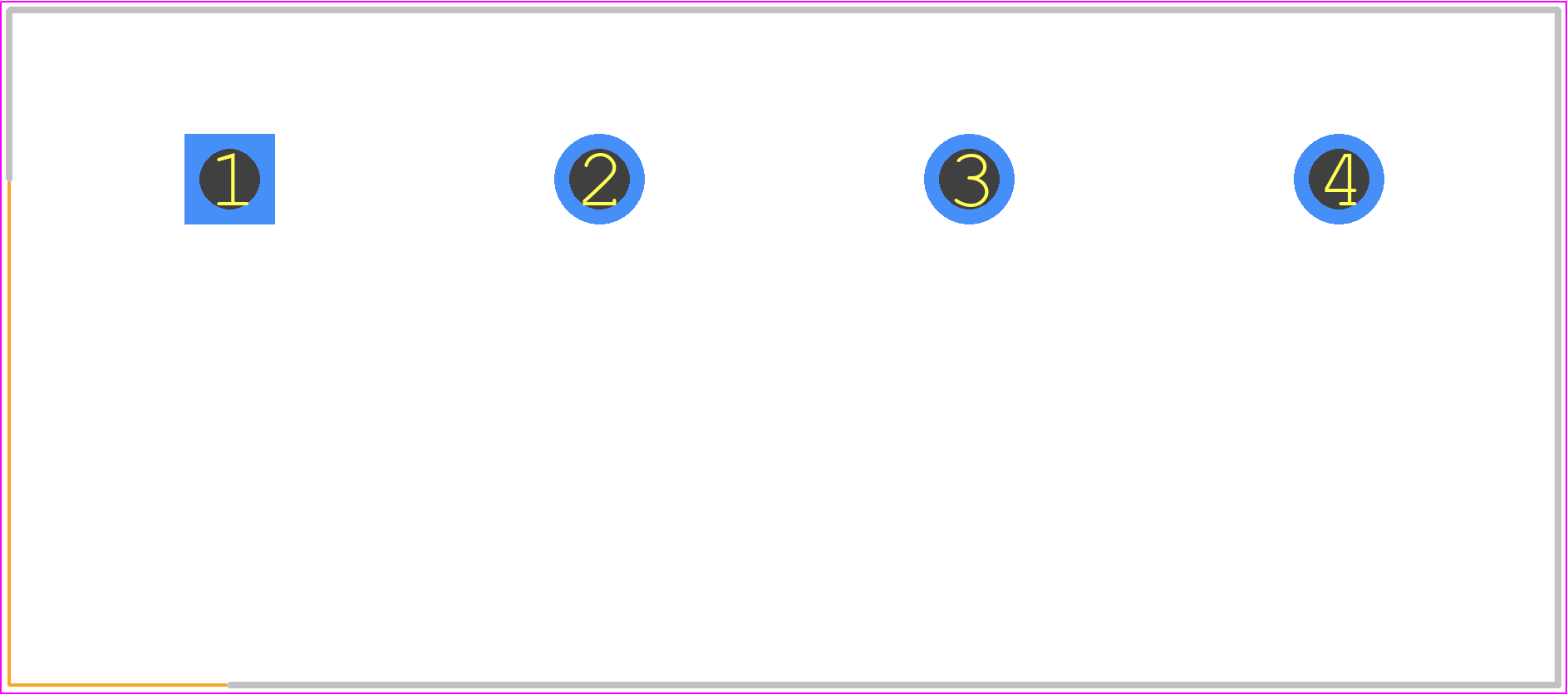

PCB Footprints
8PCV-04-006 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 8PCV-04-006
click to zoom
3D Models
8PCV-04-006 - TE Connectivity - 3D model - Header, Shrouded - Straight PTH Box - 8PCV-04-006
click to zoom

8PCV-04-006 Details

  • Manufacturer Part Number:

    8PCV-04-006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.44

  • Additional Feature:

    STANDARD: UL94V-0, POLYPROPYLENE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    30 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    5.26 mm2

  • Wire Gauge:

    10 AWG

8PCV-04-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 8PCV-04-006 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • Yes, the 8PCV-04-006 is rated for outdoor use and can withstand exposure to moisture and temperature fluctuations.
  • The maximum wire size that can be used with the 8PCV-04-006 is 14 AWG (2.08 mm²).
  • The 8PCV-04-006 is rated for operation up to 125°C (257°F), but it's recommended to derate the current carrying capacity at higher temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8PCV-04-006 Overview

Use the download button to access the 8PCV-04-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8PCV-, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
