8PCV-08-006 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Positions 8 | Number of Rows 1 | Number of Levels 1 | Contact Features: Contact Current Rating (Max) 30 AMP | PCB Contact Termination Area Plating Material Tin | Contact Base Material Copper Alloy | Dimensions: Product Length 3.573 INCH | Wire Size 18 – 10 AWG | Wire Size 22 – 10 AWG | Product Length 90.75 MM | Wire Size .326 – 5.26 MMSQ | Electrical Character

Download 8PCV-08-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8PCV-08-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

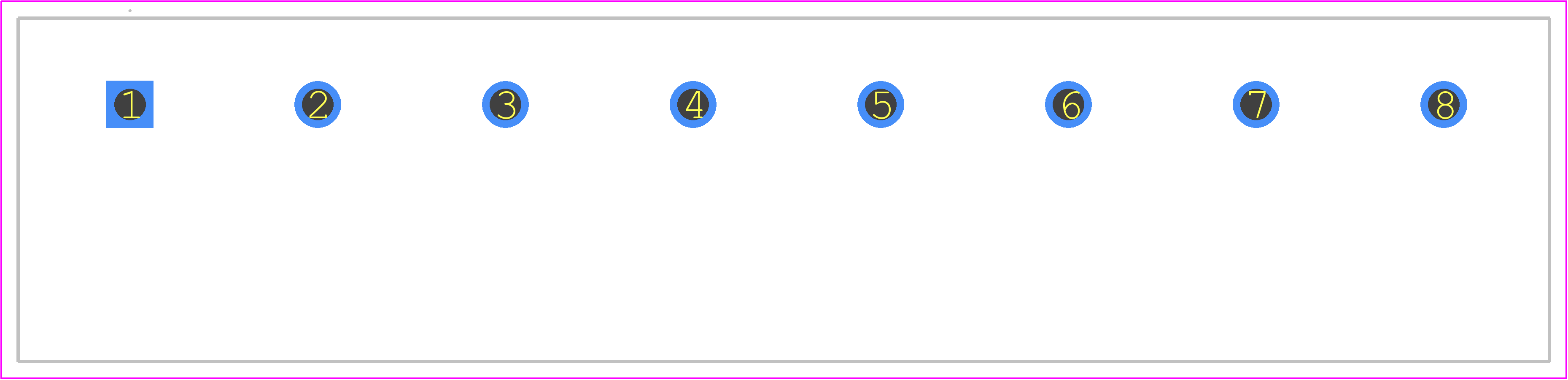

8PCV-08-006 - TE Connectivity PCB footprint - Other - Other - 8PCV-08-006-2
click to zoom
3D Models
8PCV-08-006 - TE Connectivity - 3D model - Other - 8PCV-08-006-2
click to zoom

8PCV-08-006 Details

  • Manufacturer Part Number:

    8PCV-08-006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.44

  • Additional Feature:

    STANDARD: UL94V-0, POLYPROPYLENE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    30 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    5.26 mm2

  • Wire Gauge:

    10 AWG

8PCV-08-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 8PCV-08-006 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 8PCV-08-006 is rated for outdoor use, with a temperature range of -40°C to 125°C (-40°F to 257°F) and a rating of IP67 for dust and water resistance.
  • The maximum current rating for each contact is 7.5A, with a total current rating of 60A for the entire connector.
  • No, the 8PCV-08-006 is designed for use with wire gauges 18 AWG to 24 AWG. Using a larger wire gauge may not provide a reliable connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8PCV-08-006 Overview

Use the download button to access the 8PCV-08-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8PCV-, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
