8SLVP2104ANBGI8 - Renesas Electronics

Description: The 8SLVP2104I is a high-performance differential dual LVPECL fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The 8SLVP2104I is characterized to operate from a 3.3V or 2.5V power supply. Guaranteed output-to-output and part-to-part skew characteristics make the 8SLVP2104I ideal for those clock distribution applications demanding well-defined performance and repeatability. Two selectable differential inputs and four low skew output

Download 8SLVP2104ANBGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

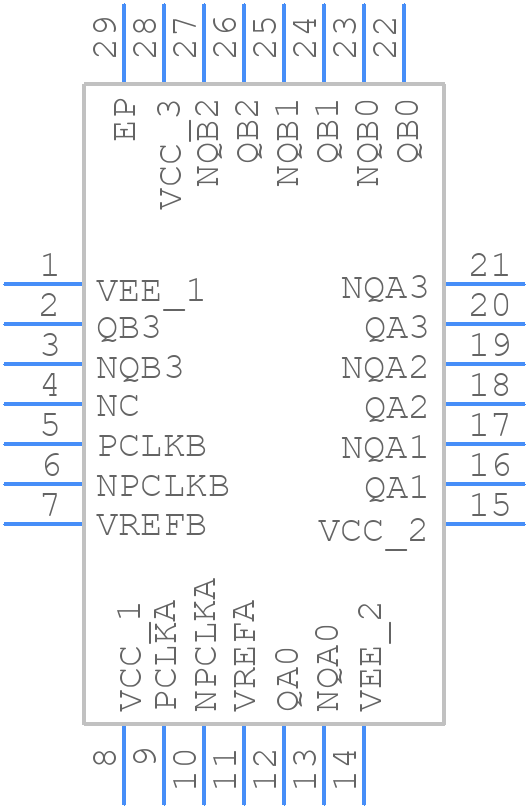

8SLVP2104ANBGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
8SLVP2104ANBGI8 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN
click to zoom
3D Models
8SLVP2104ANBGI8 - Renesas Electronics - 3D model - Quad Flat No-Lead - QFN
click to zoom

8SLVP2104ANBGI8 Details

  • Manufacturer Part Number:

    8SLVP2104ANBGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    28

  • Manufacturer Package Code:

    NBG28

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 3.3 V SUPPLY

  • Family:

    8SLVP

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.27 ns

  • Propagation Delay (tpd):

    0.27 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.025 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

8SLVP2104ANBGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 8SLVP2104ANBGI8, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, reduce electromagnetic interference (EMI), and prevent thermal issues.
  • The 8SLVP2104ANBGI8 has multiple low-power modes, including sleep, standby, and shutdown. To configure these modes, refer to the device's datasheet and application notes. Power consumption expectations vary depending on the mode and operating conditions, but Renesas provides detailed power consumption tables and graphs in the datasheet.
  • The 8SLVP2104ANBGI8 operates within a specific voltage range (1.7V to 3.6V) and temperature range (-40°C to 125°C). It's essential to ensure that the device operates within these ranges to prevent damage or malfunction. Renesas provides guidelines for voltage and temperature variations in the datasheet and application notes.
  • Renesas provides a comprehensive security guide for the 8SLVP2104ANBGI8, which includes implementation and testing guidelines for secure boot, encryption, and other security features. It's essential to follow these guidelines to ensure the device's security features are properly configured and tested.
  • Renesas offers a range of development tools and SDKs for the 8SLVP2104ANBGI8, including the Renesas Synergy Platform, e² studio, and various software libraries. These tools and SDKs provide a comprehensive development environment for designing, testing, and deploying applications on the device.
