8T39S08ANLGI - Renesas Electronics

Description: The 8T39S08A is a high-performance clock fanout buffer. The input clock can be selected from two differential inputs or one crystal input. The internal oscillator circuit is automatically disabled if the crystal input is not selected. The crystal pin can be driven by a single-ended clock. The selected signal is distributed to eight differential outputswhich can be configured as LVPECL, LVDS and HCSL outputs. In addition, an LVCMOS output is provided. All outputs can be disabled into a high-impedance state.

Download 8T39S08ANLGI Model

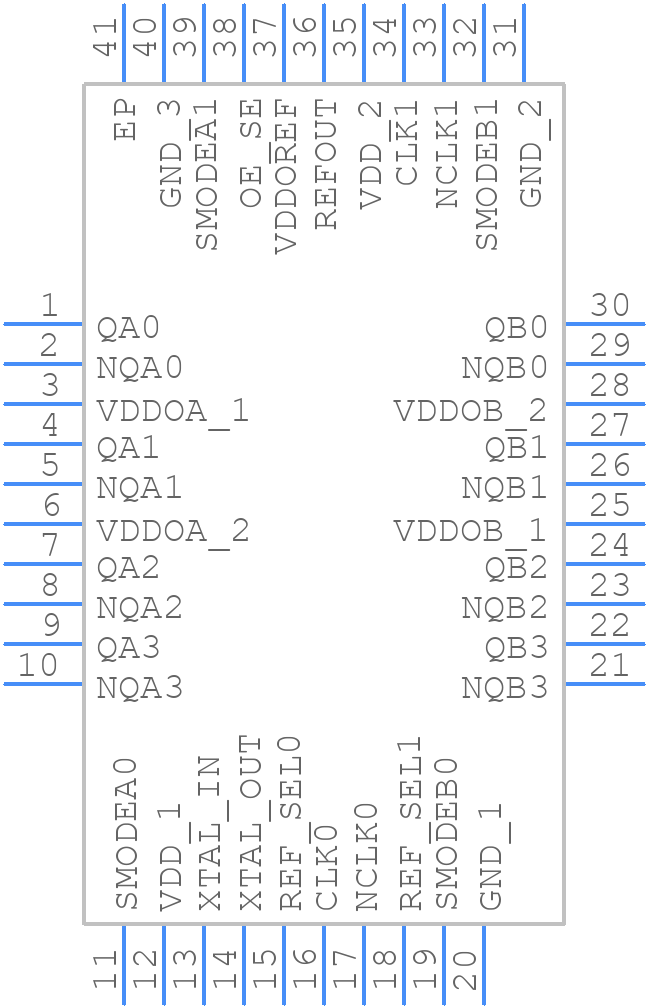

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8T39S08ANLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG40P2--ren1
click to zoom
3D Models
8T39S08ANLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG40P2--ren1
click to zoom

8T39S08ANLGI Details

  • Manufacturer Part Number:

    8T39S08ANLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    NLG40P2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    3.3 NOM SUPPLY IS ALSO AVAILABLE

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    2000 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    40 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

8T39S08ANLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP6111) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 8T39S08ANLGI has a low-power mode that can be enabled by setting the appropriate registers. Refer to the datasheet section 10.3.2 for details on how to configure the device for low-power mode, including setting the clock frequency, disabling unnecessary peripherals, and using the power-down mode.
  • The 8T39S08ANLGI has an operating temperature range of -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures, and proper thermal management is crucial to ensure reliable operation.
  • The 8T39S08ANLGI is not specifically designed or qualified for radiation-hardened applications. If you need a radiation-hardened device, you should consider Renesas' radiation-hardened products or consult with their sales team for guidance on suitable alternatives.
  • Renesas provides a clock configuration guide in their application note (AP6112) that includes troubleshooting tips and guidelines for configuring the clock tree, including setting the clock frequency, enabling/disabling clock sources, and debugging clock-related issues.
