8T49N242-006NLGI - Renesas Electronics

Description: The 8T49N242 has one fractional-feedback PLL that can be used as a frequency translator with jitter attenuation or a frequency synthesizer. It is equipped with four integer output dividers, allowing the generation of up to four different output frequencies, ranging from 8 kHz to 1 GHz. Output frequencies can be completely independent of the input frequencies. The four outputs may select among LVPECL, LVDS, HCSL or LVCMOS output levels.The 8T49N242 is ideal for use in a wide range of equipment, including 10G

Download 8T49N242-006NLGI Model
Schematic

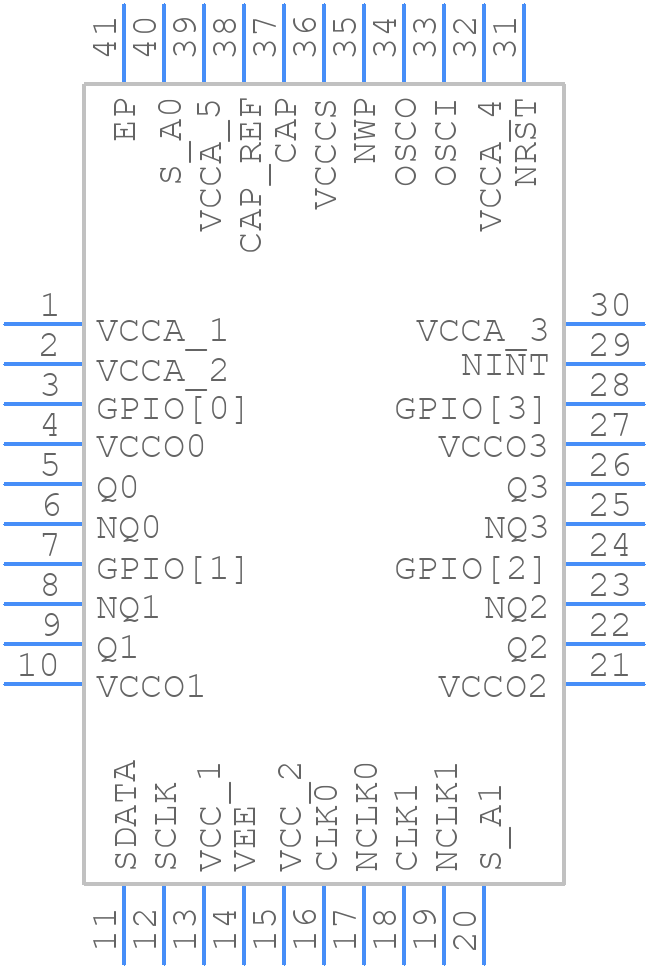

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8T49N242-006NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead VFQFN-
click to zoom
3D Models
8T49N242-006NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - 40-Lead VFQFN-
click to zoom

8T49N242-006NLGI Details

  • Manufacturer Part Number:

    8T49N242-006NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    NLG40P2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    ALOS OPERATES AT 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    1000 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    875 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    309 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

8T49N242-006NLGI Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 8T49N242-006NLGI, which includes recommended PCB layout guidelines, component placement, and routing suggestions to minimize noise and ensure optimal performance.
  • The 8T49N242-006NLGI is a highly configurable device. Renesas provides a software tool, such as the ClockPath Designer, that allows users to select the desired frequency output, configure the device settings, and generate the necessary register settings.
  • Renesas recommends a specific power-up sequence for the 8T49N242-006NLGI to ensure proper device initialization, and to prevent damage. The recommended sequence is typically outlined in the datasheet or application notes.
  • Renesas provides application notes and technical documentation that outline common troubleshooting techniques for issues related to clock signal integrity, jitter, and other performance-related problems. Additionally, Renesas offers technical support resources, such as FAQs, knowledge bases, and support forums.
  • Yes, the 8T49N242-006NLGI has specific thermal management requirements to ensure reliable operation. The device datasheet provides thermal characteristics, such as junction-to-ambient thermal resistance, and recommended thermal management strategies, such as heat sinking and airflow management.
