8V19N490BDGI8 - Renesas Electronics

Description: The 8V19N490 is a fully integrated FemtoClock® NG jitter attenuator and clock synthesizer designed as a high-performance clock solution for conditioning and frequency/phase management of wireless base station radio equipment boards. The device is optimized to deliver excellent phase noise performance as required in GSM, WCDMA, LTE, and LTE-A radio board implementations. The device supports JESD204B subclass 0 and 1 clocks.A two-stage PLL architecture supports both jitter attenuation and frequency multiplica

Download 8V19N490BDGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

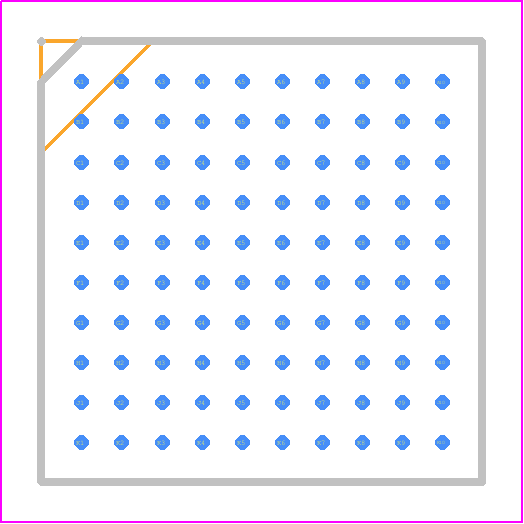

8V19N490BDGI8 - Renesas Electronics PCB footprint - BGA - BGA - CABGA-100, Package Outline Drawing 11.0 x 11.0 x 1.1 mm Body, 1.0mm Pitch
click to zoom
3D Models
8V19N490BDGI8 - Renesas Electronics  - 3D model - BGA - CABGA-100, Package Outline Drawing 11.0 x 11.0 x 1.1 mm Body, 1.0mm Pitch
click to zoom

8V19N490BDGI8 Details

  • Manufacturer Part Number:

    8V19N490BDGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CABGA

  • Pin Count:

    100

  • Manufacturer Package Code:

    BDG100

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    1395MILLIAMP NOMINAL SUPPLY CURRENT IS AVAILABLE

  • JESD-30 Code:

    S-PBGA-B100

  • JESD-609 Code:

    e1

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    2949.12 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA100,10X10,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    2000 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8V19N490BDGI8 Overview

Use the download button to access the 8V19N490BDGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8V19N, or try a keyword search, such as Clock Generators
