8V19N850DNLGI - Renesas Electronics

Description: The 8V19N850 is a fully integrated Radio Unit Clock Synchronizer and Jitter Attenuator designed as a high-performance clock solution for phase/frequency synchronization and signal conditioning of wireless base station radio equipment. The device supports JESD204B/C subclass 0 and 1 device clocks and SYSREF synchronization for converters. The 8V19N850 supports two independent frequency domains: one that can be used for the digital clock (Ethernet and FEC rates) domain with four outputs, and the device clock

Download 8V19N850DNLGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8V19N850DNLGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

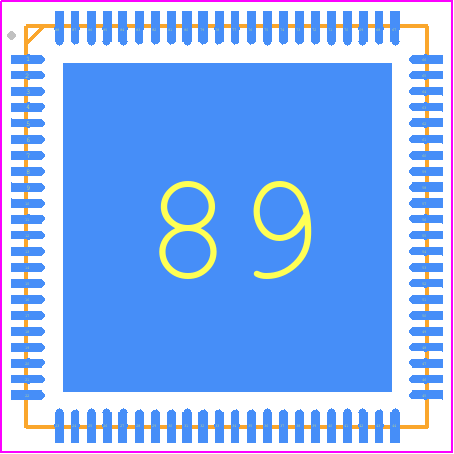

8V19N850DNLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 88-VFQFPN 10.0 x 10.0 x 0.85
click to zoom
3D Models
8V19N850DNLGI - Renesas Electronics - 3D model - Quad Flat No-Lead - 88-VFQFPN 10.0 x 10.0 x 0.85
click to zoom

8V19N850DNLGI Details

  • Manufacturer Part Number:

    8V19N850DNLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    88

  • Manufacturer Package Code:

    NLG88P2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-XQCC-N88

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    88

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    2949.12 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC88,.4SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    1000 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    1725 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

8V19N850DNLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3801EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 8V19N850DNLGI can be configured for a specific frequency output using the Serial Programming Interface (SPI) or I2C interface. Renesas provides a configuration tool (Renesas Clock Configurator) that allows users to generate the necessary configuration data and programming files.
  • The 8V19N850DNLGI has an operating temperature range of -40°C to +85°C, but it's recommended to operate within the industrial temperature range of -40°C to +70°C for optimal performance and reliability.
  • Renesas provides a troubleshooting guide in their application note (R01AN3801EU0100) which includes steps to identify and resolve common issues. Additionally, engineers can use Renesas' Clock Signal Integrity Tool to analyze and debug clock signal quality.
  • Yes, the 8V19N850DNLGI is compatible with lead-free soldering processes and is RoHS compliant. However, it's recommended to follow Renesas' recommended soldering profile and guidelines to ensure reliable assembly and operation.
