8V19N880BDGI8 - Renesas Electronics

Description: The 8V19N880 is a fully integrated FemtoClock® RF Sampling Clock Generator and Jitter Attenuator designed as a high-performance clock solution for conditioning and frequency/phase management of wireless base station radio equipment boards. The device is optimized to deliver excellent phase noise performance as required in 4G, 5G and including mmWave radio implementations. The device supports JESD204B (subclass 0 and 1) and JESD204C.A two-stage PLL architecture supports both jitter attenuation and frequency

Download 8V19N880BDGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

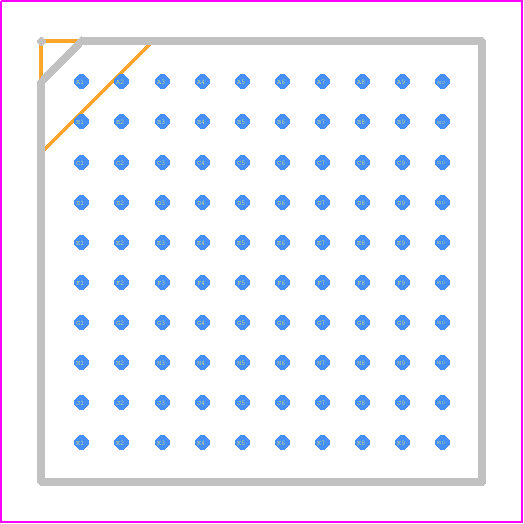

8V19N880BDGI8 - Renesas Electronics PCB footprint - BGA - BGA - CABGA-100, Package Outline Drawing 11.0 x 11.0 x 1.1 mm Body, 1.0mm Pitch
click to zoom
3D Models
8V19N880BDGI8 - Renesas Electronics  - 3D model - BGA - CABGA-100, Package Outline Drawing 11.0 x 11.0 x 1.1 mm Body, 1.0mm Pitch
click to zoom

8V19N880BDGI8 Details

  • Manufacturer Part Number:

    8V19N880BDGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CABGA

  • Package Description:

    CABGA-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    BDG100D1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B100

  • JESD-609 Code:

    e1

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    6000 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA100,10X10,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    6000 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    771 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    JITTER ATTENUATOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8V19N880BDGI8 Overview

Use the download button to access the 8V19N880BDGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8V19N, or try a keyword search, such as Clock Generators

Parts related to 8V19N880BDGI8

Showing 0 results

8V19N880BDGI8 Alternates

Showing results

Image Part Number Model
Part Image 8V19N880BDGI Integrated Device Technology Inc

Clock Generator
