8V41N012NLGI - Renesas Electronics

Description: VFQFP-N 10.0 X 10.0 X 0.9 MM - NO LEAD

Download 8V41N012NLGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

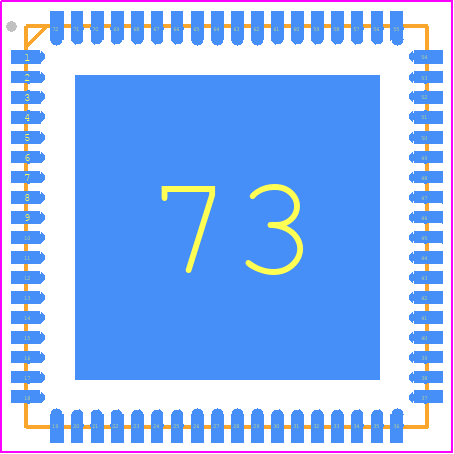

8V41N012NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG72P1_-
click to zoom
3D Models
8V41N012NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG72P1_-
click to zoom

8V41N012NLGI Details

  • Manufacturer Part Number:

    8V41N012NLGI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-72

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    312.5 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

8V41N012NLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas provides application notes and design guides that provide configuration examples and guidelines for specific use cases. Additionally, the device's programming model and register maps can be found in the datasheet and programming manual.
  • The 8V41N012NLGI has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to follow Renesas' thermal management guidelines, which include using thermal vias, heat sinks, and thermal interface materials. Additionally, the device's thermal protection features, such as thermal shutdown and thermal warning, can be enabled to prevent damage from overheating.
  • Renesas provides troubleshooting guides and FAQs that cover common issues and their solutions. Additionally, engineers can use tools such as oscilloscopes, logic analyzers, and signal generators to debug and analyze the device's behavior. Renesas also offers technical support and design assistance through their website and local sales offices.
  • The 8V41N012NLGI is designed to meet various EMI/EMC regulatory standards, such as CISPR and FCC. To ensure compliance, engineers should follow Renesas' EMI/EMC guidelines, which include using proper PCB layout, shielding, and filtering techniques. Additionally, the device's built-in features, such as spread spectrum clocking and clock frequency modulation, can help reduce EMI emissions.
