Description:The 8V97051 is a high performance Wideband RF Synthesizer / PLL optimized for use as the local oscillator (LO) in Multi-Carrier, Multi-mode FDD & TDD Base Station radio card. It is offered in a compact 5x5, 32-VFQFN package. The 8V97051 Wideband RF Synthesizer / PLL offers a default Fractional Mode with the option to use it with an Integer mode. It requires an external loop filter. The 8V97051 with integrated Voltage Controlled Oscillator (VCO) supports output frequencies from 34.375MHz to 4400MHz and maint
A good PCB layout for the 8V97051NLGI involves keeping the clock traces short and shielded, using a solid ground plane, and placing decoupling capacitors close to the device. Renesas provides a recommended PCB layout in their application notes.
To ensure proper power and decoupling, use a high-quality power supply, add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device, and consider adding a power-on reset circuit to ensure a clean power-up sequence.
The 8V97051NLGI has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. Also, consider thermal design and simulation tools to optimize your design.
To troubleshoot issues, use a logic analyzer or oscilloscope to monitor signals, check the device's configuration and programming, and consult Renesas' documentation and application notes for common issues and solutions.
Yes, follow good EMI/EMC design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters or common-mode chokes. Consult Renesas' documentation and relevant industry standards (e.g., CISPR) for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8V97051NLGI Overview

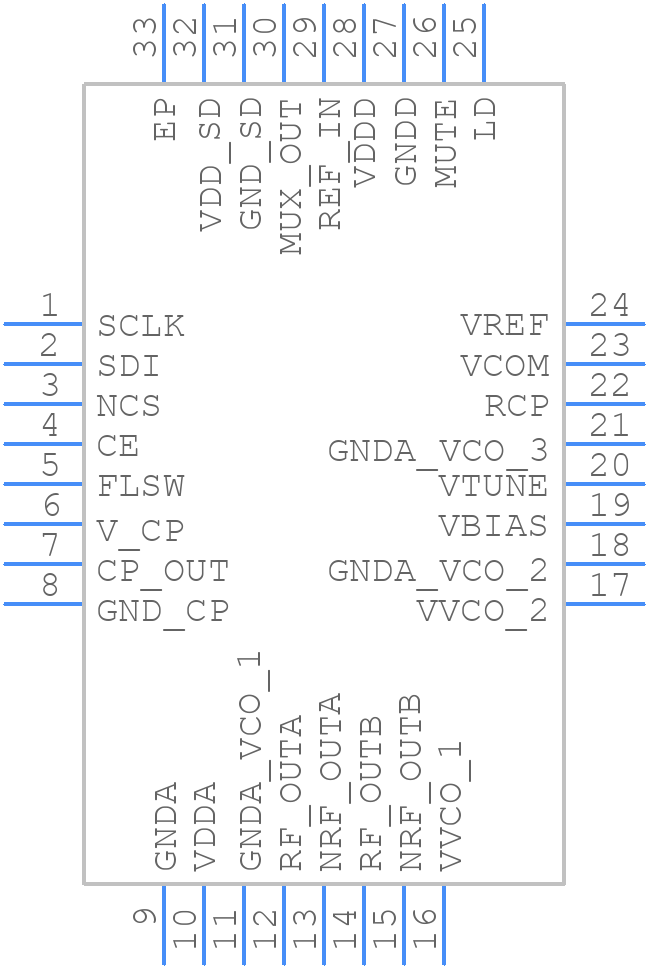

Use the download button to access the 8V97051NLGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8V970,
or try a keyword search, such as Clock Generators
