8Z-16.000MEEQ-T footprint, schematic symbol and 3D model by TXC CORPORATION

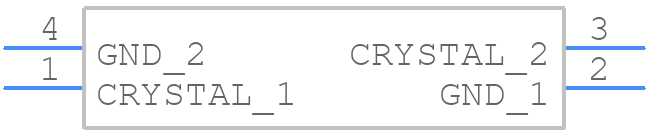

Symbol

PCB Footprints

3D Models

8Z-16.000MEEQ-T Details

The recommended storage temperature range for the 8Z-16.000MEEQ-T is -40°C to +125°C.
Yes, the 8Z-16.000MEEQ-T is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 1000G (11ms).
The typical lead time for the 8Z-16.000MEEQ-T is 8-12 weeks, but this may vary depending on the quantity and availability.
Yes, the 8Z-16.000MEEQ-T is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
The operating temperature range for the 8Z-16.000MEEQ-T is -20°C to +70°C.

Community Provided

System Verified

Community Approved

Use the download button to access the 8Z-16.000MEEQ-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 8Z-16, or try a keyword search, such as Quartz Crystals
