8Z-24.000MAAV-T footprint, schematic symbol and 3D model by TXC CORPORATION

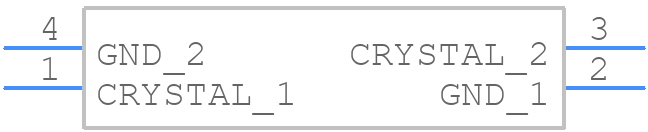

Symbol

PCB Footprints

3D Models

8Z-24.000MAAV-T Details

The operating temperature range of the 8Z-24.000MAAV-T is -40°C to +85°C.
Yes, the 8Z-24.000MAAV-T is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
The frequency stability of the 8Z-24.000MAAV-T is ±20 ppm over the operating temperature range.
Yes, the 8Z-24.000MAAV-T is designed to withstand high-vibration environments, with a vibration resistance of 10G (sinusoidal vibration, 10-2000 Hz).
The recommended storage temperature for the 8Z-24.000MAAV-T is -40°C to +85°C, with a relative humidity of 60% or less.

Community Provided

System Verified

Community Approved

Use the download button to access the 8Z-24.000MAAV-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 8Z-24, or try a keyword search, such as Quartz Crystals
