Part Image

9-1415536-4 - TE Connectivity

Description: General Purpose Power Relay, DC, Monostable, 3 Form C 3PDT-CO, 10 A Contact Rating, 24 VDC Coil Voltage, SCHRACK Miniature Relay PT

Download 9-1415536-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

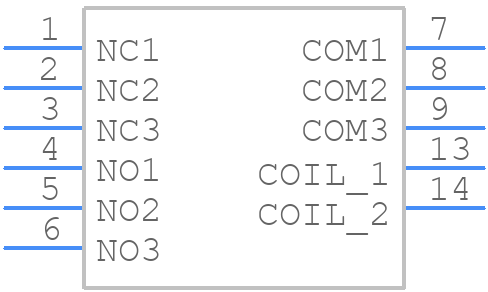

Symbol
9-1415536-4 - TE Connectivity - PCB symbol
click to zoom

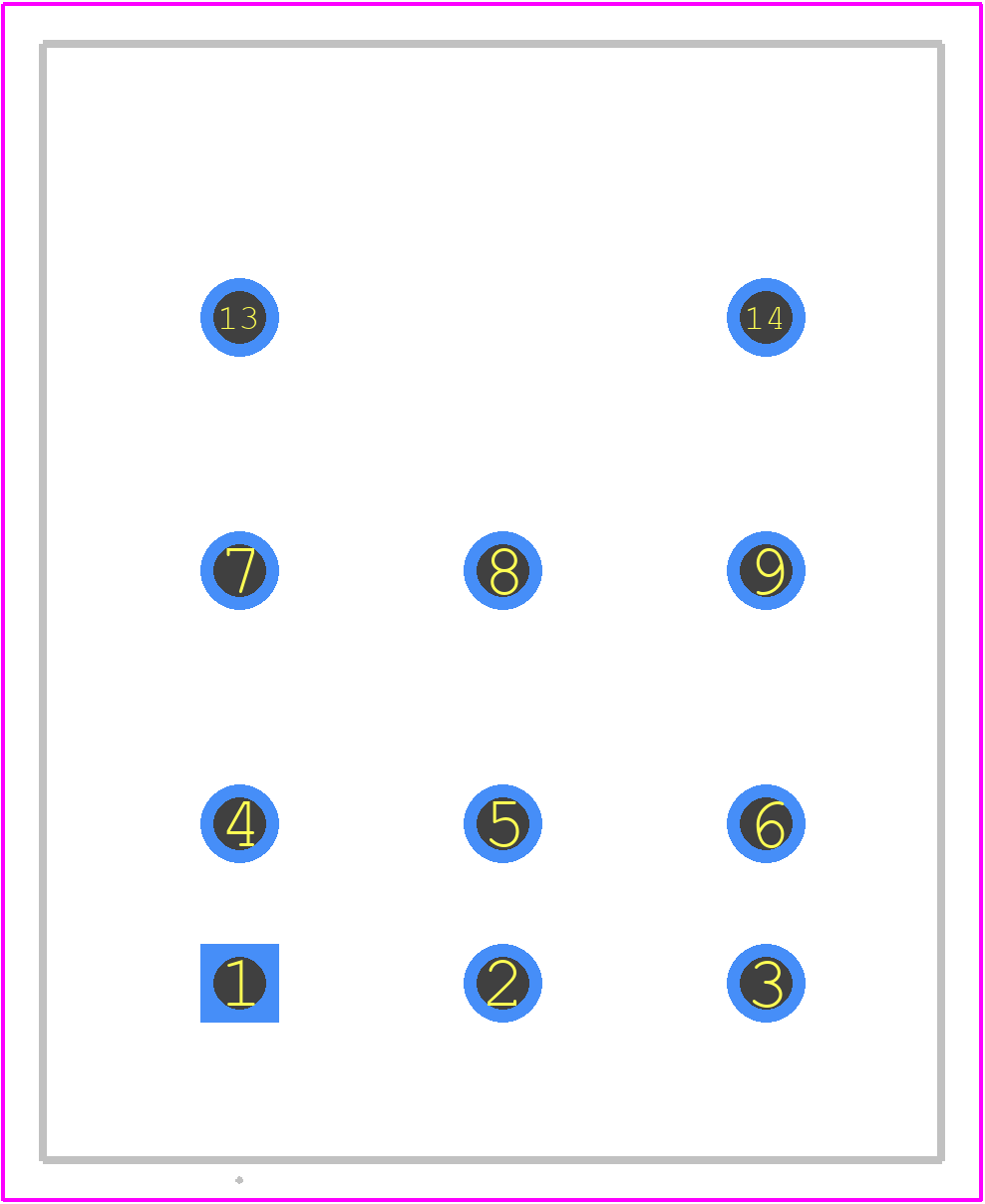

PCB Footprints
9-1415536-4 - TE Connectivity PCB footprint - Other - Other - 9-1415536-4-3
click to zoom
3D Models
9-1415536-4 - TE Connectivity - 3D model - Other - 9-1415536-4-3
click to zoom

9-1415536-4 Details

  • Manufacturer Part Number:

    9-1415536-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.59

  • Body Breadth:

    22.5 mm

  • Body Height:

    30 mm

  • Body Length or Diameter:

    28 mm

  • Coil Current(DC)-Max:

    0.031 A

  • Coil Operate Voltage(DC):

    18 V

  • Coil Power:

    741 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    777 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    10 A

  • Contact Current(DC)-Max:

    10 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    2500 Vrms

  • Dielectric Strength Between Open Contacts:

    1200 Vrms

  • End Contact Material:

    SILVER NICKEL

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    28 X 22.5 X 30

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    3 FORM C

  • Relay Function:

    3PDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    30 g

9-1415536-4 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 9-1415536-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 9-1415536-4 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 9-1415536-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use the 9-1415536-4 connector with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector is compatible with the desired wire size and to determine any necessary modifications or adjustments.
