9-2304372-9 - TE Connectivity

Description: Board-to-Board, Shielded, Horizontal, 2 Position, Z Code, 1.8 mm [.071 in] Centerline, Signal, MATEnet, Data Connectivity Headers

Download 9-2304372-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
9-2304372-9 - TE Connectivity - PCB symbol
click to zoom

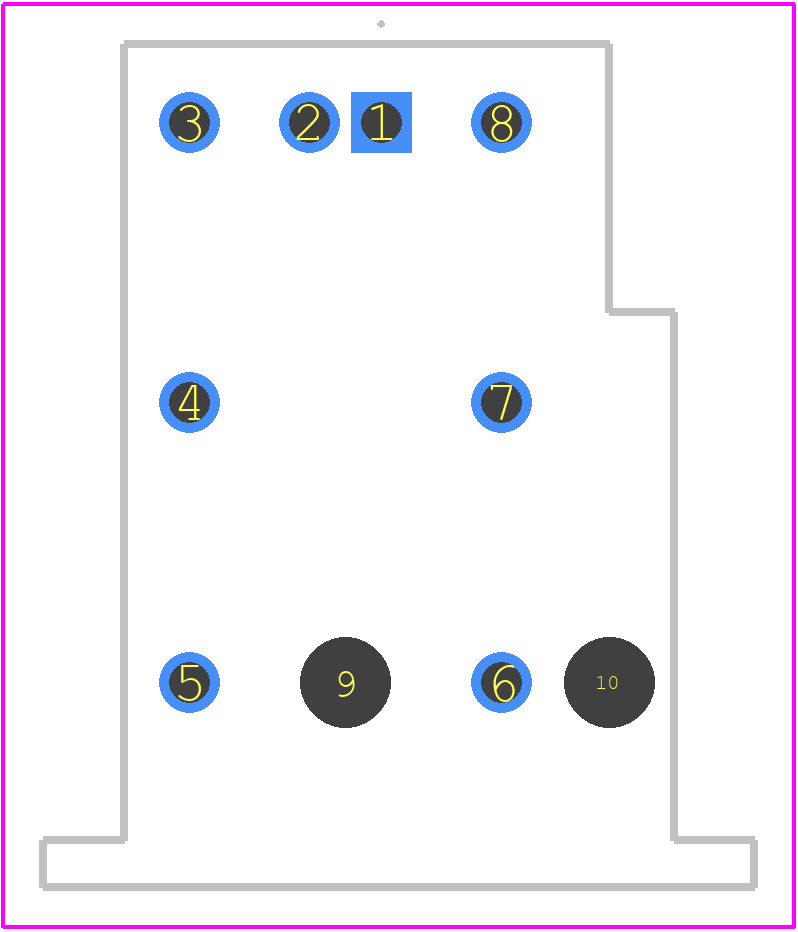

PCB Footprints
9-2304372-9 - TE Connectivity PCB footprint - Other - Other - 9-2304372-9-12
click to zoom
3D Models
9-2304372-9 - TE Connectivity - 3D model - Other - 9-2304372-9-12
click to zoom

9-2304372-9 Details

  • Manufacturer Part Number:

    9-2304372-9

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    SHIELDED; POLARIZED; GROUND SHIELD CONTACTS: 2 ALSO AVAILABLE

  • Body Breadth:

    0.7 inch

  • Body Depth:

    0.53 inch

  • Body Length:

    0.83 inch

  • Characteristic Impedance:

    100 Ω

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLUE

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Frequency-Max:

    0.6 GHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Shell Material:

    GLASS FILLED POLYAMIDE4T

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

9-2304372-9 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 9-2304372-9 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
  • Yes, the 9-2304372-9 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 standard for vibration resistance, making it suitable for applications with high vibration levels.
  • The 9-2304372-9 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95% RH. However, it's essential to consult TE Connectivity's documentation and perform environmental testing to ensure the connector meets the specific application requirements.
  • The 9-2304372-9 connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the 9-2304372-9 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and accessories. However, it's essential to consult TE Connectivity's documentation and perform compatibility testing to ensure seamless integration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9-2304372-9 Overview

Use the download button to access the 9-2304372-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9-230, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
