9-55556-0 - TE Connectivity

Description: 10 POWER TAP ASSY WITH SCREW #6-32

Download 9-55556-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
9-55556-0 - TE Connectivity - PCB symbol
click to zoom

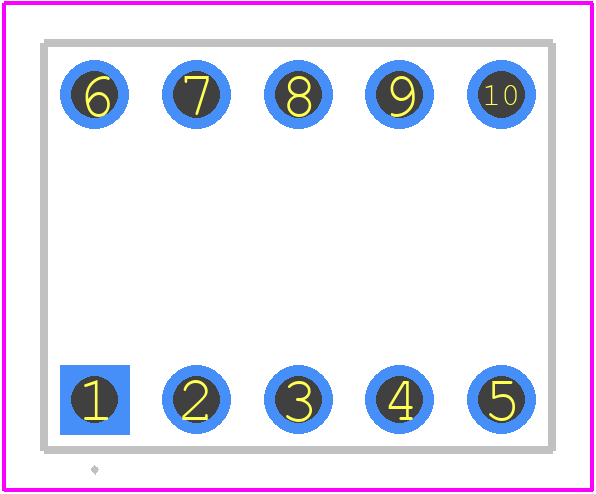

PCB Footprints
9-55556-0 - TE Connectivity PCB footprint - Other - Other - 9-55556-0-1
click to zoom
3D Models
9-55556-0 - TE Connectivity - 3D model - Other - 9-55556-0-1
click to zoom

9-55556-0 Details

  • Manufacturer Part Number:

    9-55556-0

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    7 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    COPPER ALLOY

  • Rated Current:

    25 A

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    POWER TERMINAL

9-55556-0 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screws on the 9-55556-0 connector.
  • Yes, the 9-55556-0 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • Yes, the 9-55556-0 connector is designed to operate in harsh environments, including high temperatures up to 125°C (257°F) and high humidity. However, it's essential to follow the recommended storage and operating conditions outlined in the datasheet.
  • The 9-55556-0 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the 9-55556-0 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and accessories. However, it's essential to verify compatibility before integrating the connector into a system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9-55556-0 Overview

Use the download button to access the 9-55556-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9-555, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
