9-966140-1 - TE Connectivity

Description: Junior Power Timer 2.8 18W plug header TE Connectivity 9-966140 Series, 5mm Pitch 18 Way 3 Row Right Angle PCB Header, Solder Termination

Download 9-966140-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
9-966140-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

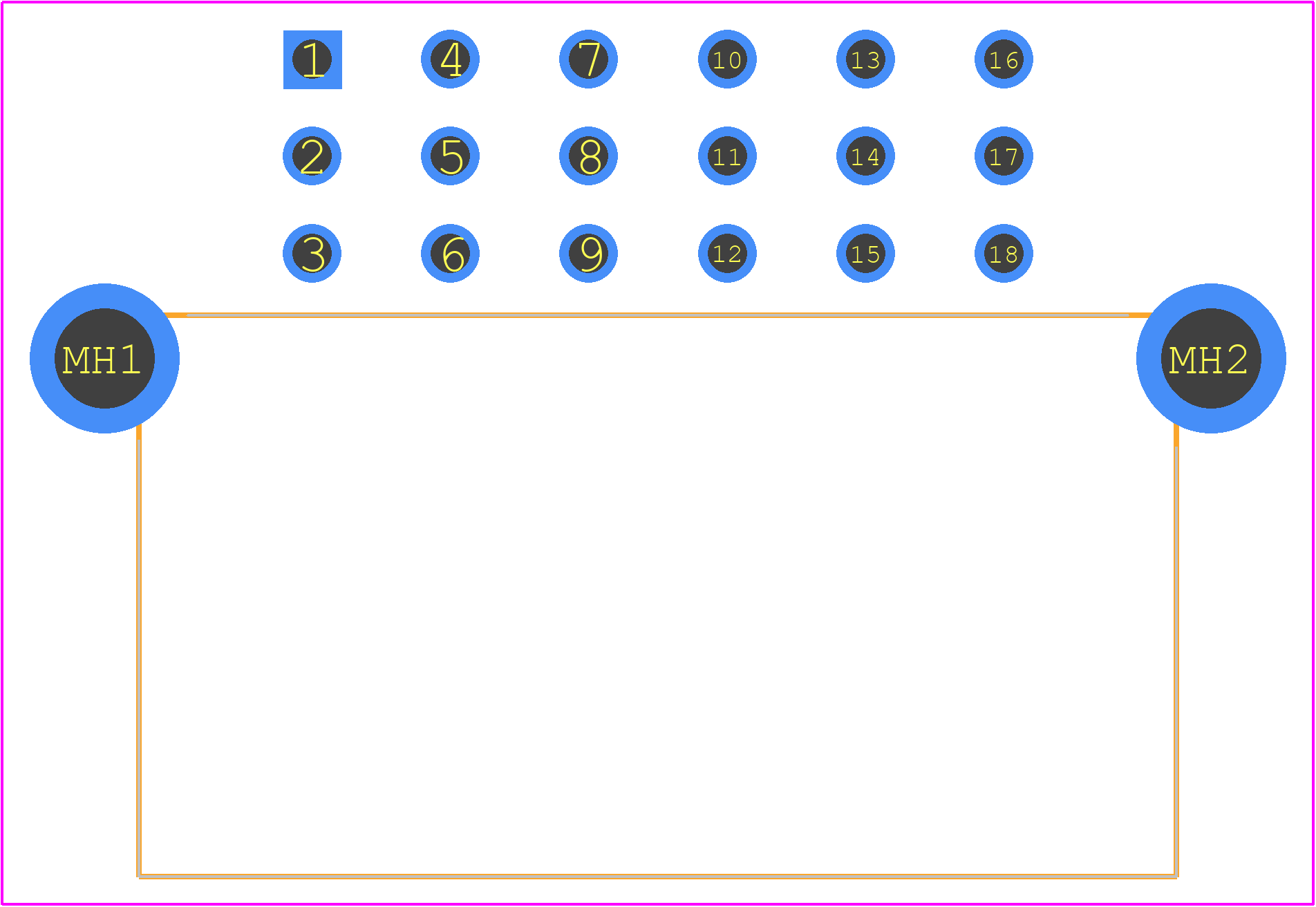

9-966140-1 - TE Connectivity PCB footprint - Other - Other - 9-966140-1-4
click to zoom
3D Models
9-966140-1 - TE Connectivity - 3D model - Other - 9-966140-1-4
click to zoom

9-966140-1 Details

  • Manufacturer Part Number:

    9-966140-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.791 inch

  • Body Length:

    1.811 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

  • UL Flammability Code:

    94-HB

9-966140-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 9-966140-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 9-966140-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 9-966140-1 connector is designed to withstand harsh environmental conditions, including moisture, dust, and extreme temperatures. However, it's essential to follow proper sealing and protection guidelines to ensure the connector's reliability in outdoor or harsh environments.
  • Yes, the 9-966140-1 connector is designed to be compatible with other TE Connectivity products and systems. However, it's essential to verify compatibility and follow proper integration guidelines to ensure reliable performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9-966140-1 Overview

Use the download button to access the 9-966140-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9-966, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
