9-966140-5 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

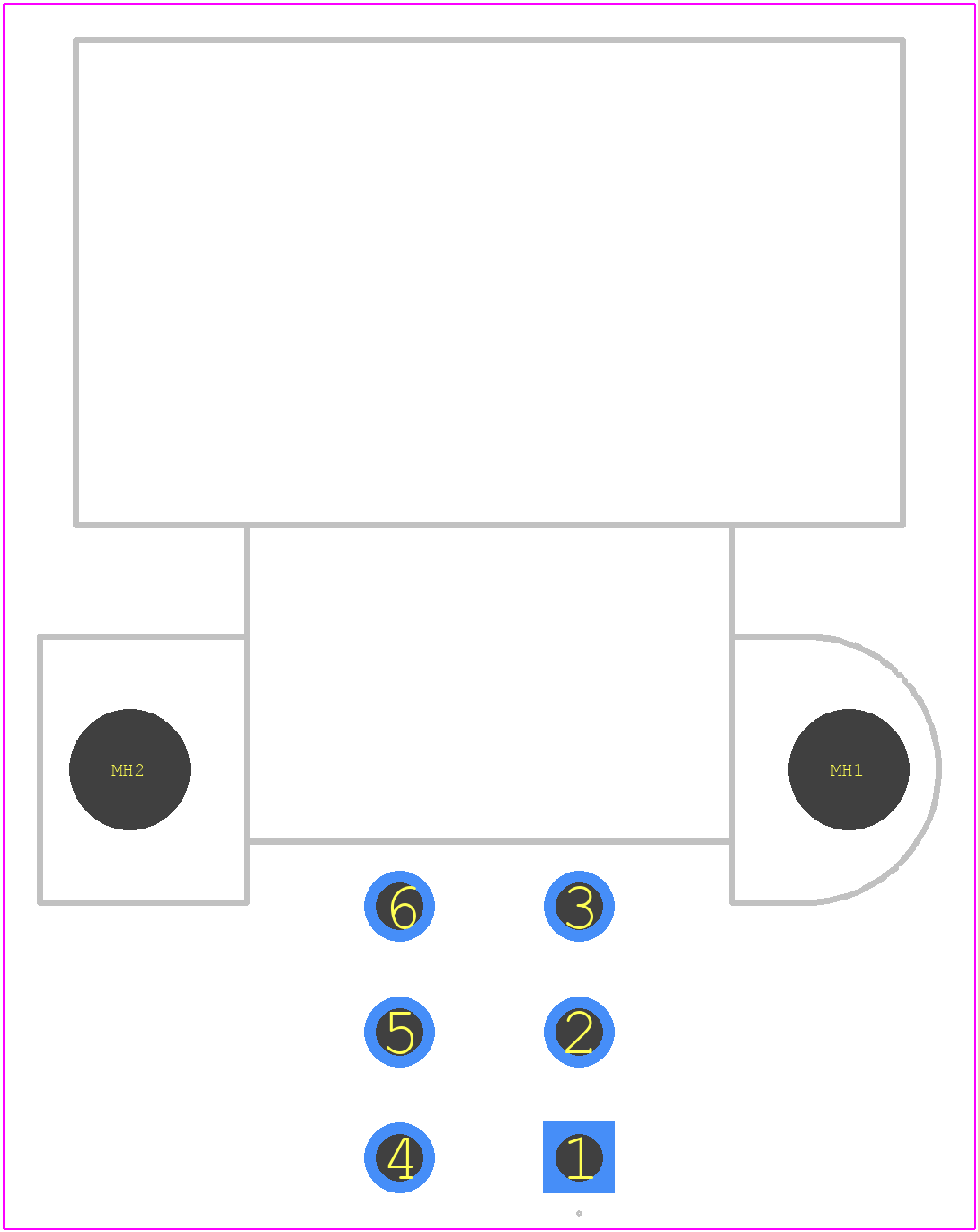

PCB Footprints

9-966140-5 - TE Connectivity PCB footprint - Other - Other - 9-966140-5-3

click to zoom

3D Models

9-966140-5 - TE Connectivity - 3D model - Other - 9-966140-5-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 9-966140-5
Part Number 9-966140-5
Manufacturer TE Connectivity
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 9-966140-5-3
Released Date Aug 30, 2023
Last Modified Date Apr 10, 2025 11:02 AM UTC
Pinout / Pin List Click Here (Member Only)

9-966140-5 Details

Manufacturer Part Number:
9-966140-5
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
28 Weeks, 3 Days
Manufacturer:
TE Connectivity
YTEOL:
7
Body Breadth:
0.791 inch
Body Length:
1.024 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
PANEL
Number of Ports:
1
Number of Rows Loaded:
3
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
24 V
Reference Standard:
UL
Terminal Pitch:
3.5 mm
Termination Type:
SOLDER
Total Number of Contacts:
6
UL Flammability Code:
94-HB

9-966140-5 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
Yes, the 9-966140-5 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
The operating temperature range for the 9-966140-5 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
The 9-966140-5 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure the connector is properly sealed and protected from moisture, dust, and other environmental factors.
Yes, the 9-966140-5 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's documentation or technical support for specific guidance.

Trust Checks

Community Provided

System Verified

Community Approved

9-966140-5 Overview

Use the download button to access the 9-966140-5 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 9-966, or try a keyword search, such as Combination Line Connectors
