- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 9-967689-1
- Part Number 9-967689-1
- Manufacturer TE Connectivity
- Pin Count 72
- Part Category Connector
- Package Category Other

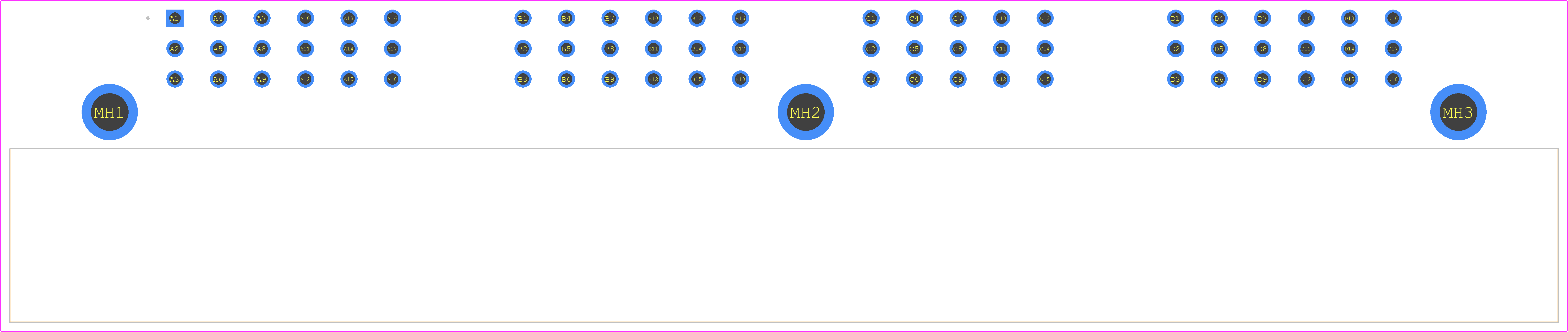

- Footprint Name Other - 9-967689-1-8
- Released Date Dec 9, 2020
- Last Modified Date Apr 10, 2024 10:47 AM UTC
- Pinout / Pin List Click Here (Member Only)
9-967689-1 Details
-
Manufacturer Part Number:
9-967689-1
-
Brand Name:
AMP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
Body Breadth:
1.177 inch
-
Body Length:
7.007 inch
-
Connector Type:
COMBINATION LINE CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
9-967689-1 Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the 9-967689-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs).
-
Yes, the 9-967689-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial equipment.
-
Yes, the 9-967689-1 connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity resistance up to 95% RH.
-
The 9-967689-1 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
-
Yes, the 9-967689-1 connector is designed to be compatible with other TE Connectivity products, including cables, contacts, and backshells, allowing for easy integration into existing systems.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
9-967689-1 Overview
Use the download button to access the 9-967689-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9-967,
or try a keyword search, such as Combination Line Connectors
