900-SUN-7.5/06 - WECO

Description: Connector, Tab, Tab Connection, SUN, 7 mm, 6, 0.051 in

Download 900-SUN-7.5/06 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
900-SUN-7.5/06 - WECO - PCB symbol
click to zoom
PCB Footprints

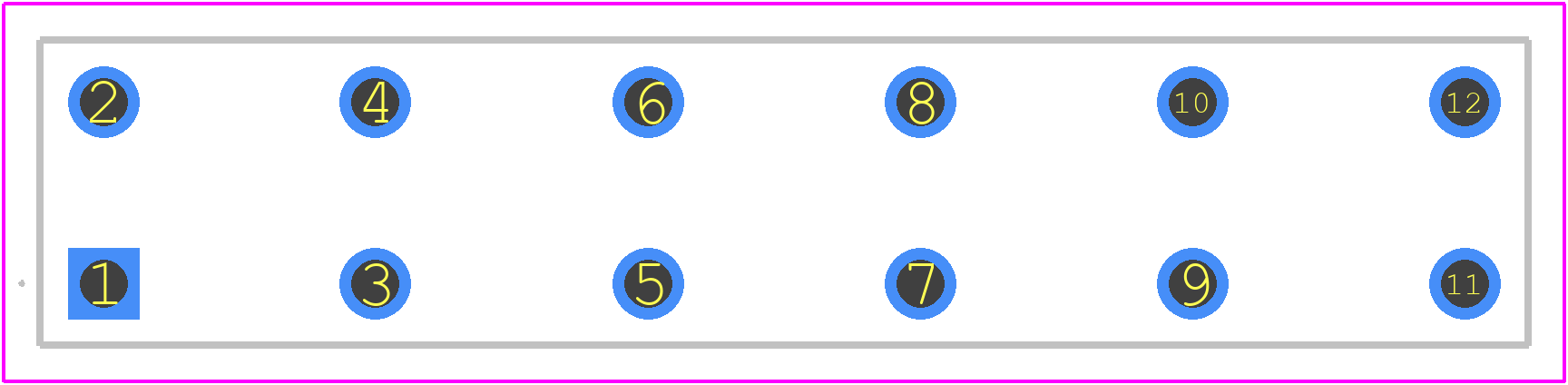

900-SUN-7.5/06 - WECO PCB footprint - Other - Other - 900-SUN-7.5/06-3
click to zoom
3D Models
900-SUN-7.5/06 - WECO - 3D model - Other - 900-SUN-7.5/06-3
click to zoom

900-SUN-7.5/06 Details

  • Manufacturer Part Number:

    900-SUN-7.5/06

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    WECO Electrical Connectors

  • Body Breadth:

    0.37 inch

  • Body Depth:

    0.236 inch

  • Body Length:

    1.614 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    16 A

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

900-SUN-7.5/06 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 900-SUN-7.5/06 connector is -40°C to 125°C.
  • Yes, the 900-SUN-7.5/06 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The mating cycle of the 900-SUN-7.5/06 connector is 500 cycles minimum.
  • Yes, the 900-SUN-7.5/06 connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the 900-SUN-7.5/06 connector is RoHS and REACH compliant, making it suitable for use in European markets.
