Part Image

9001-36161C00A - OUPIN

Description: 2.54mm 2 16P -55~+125 Straight 2A Plugin,P=2.54mm Board-to-Board and Backplane Connector ROHS

Download 9001-36161C00A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

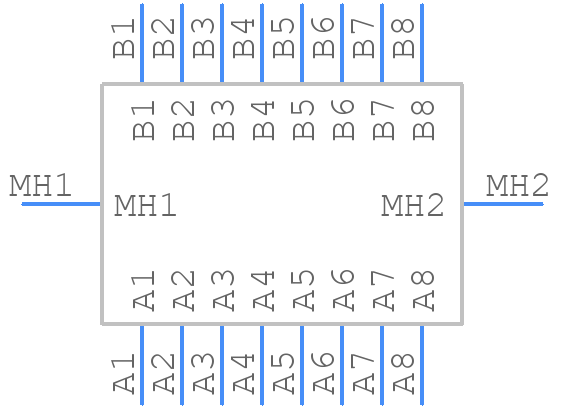

9001-36161C00A - OUPIN - PCB symbol
click to zoom
PCB Footprints

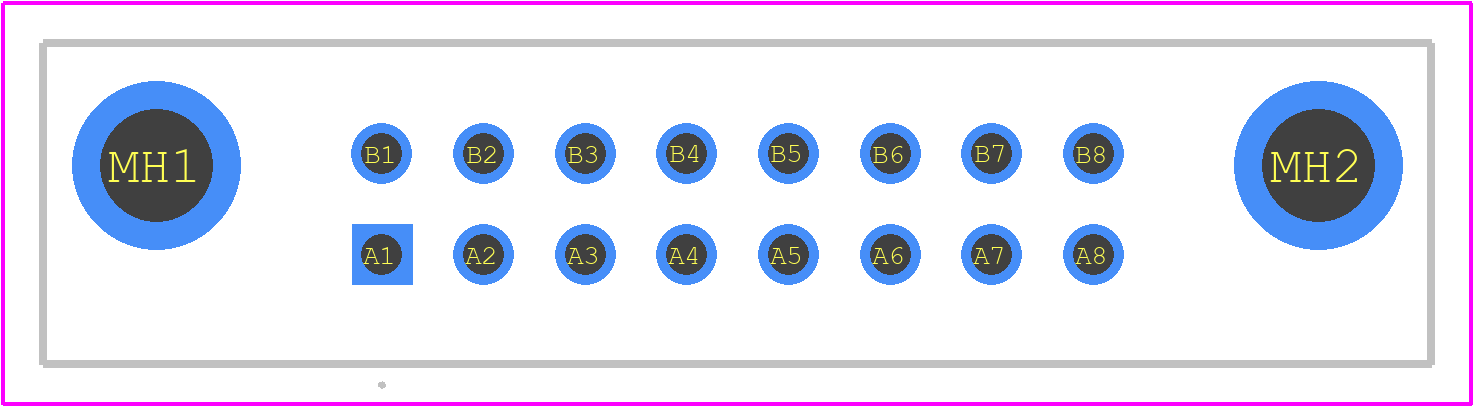

9001-36161C00A - OUPIN PCB footprint - Other - Other - 9001-36161C00A-3
click to zoom
3D Models
9001-36161C00A - OUPIN - 3D model - Other - 9001-36161C00A-3
click to zoom

9001-36161C00A Details

  • Manufacturer Part Number:

    9001-36161C00A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Oupiin

  • Connector Type:

    BOARD CONNECTOR

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9001-36161C00A Overview

Use the download button to access the 9001-36161C00A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9001-, or try a keyword search, such as Headers and Edge Type Connectors
