Coto Technology provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating.
To prevent damage to the relay, it's crucial to handle the device in a way that minimizes exposure to strong magnetic fields. Use anti-magnetic tools, and avoid placing the relay near magnetic materials or sources of strong magnetic fields during assembly and testing.
The maximum switching frequency for the 9002-12-11 is not explicitly stated in the datasheet. However, Coto Technology recommends a maximum switching frequency of 20 Hz for optimal relay life and performance. Exceeding this frequency may lead to reduced relay life and increased contact resistance.
While the 9002-12-11 is a robust relay, it's not designed for extreme vibration or shock environments. If your application requires operation in such conditions, you should consider using a relay specifically designed for high-reliability and ruggedness, such as Coto's 9002-12-11-HR or 9002-12-11-HT models.
To prevent contamination and ensure reliable contact operation, use a clean and dry assembly environment. Avoid touching the relay's contacts or leads, and use anti-static wrist straps or mats to prevent electrostatic discharge. Clean the contacts with a soft brush and a mild solvent, such as isopropyl alcohol, if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9002-12-11 Overview

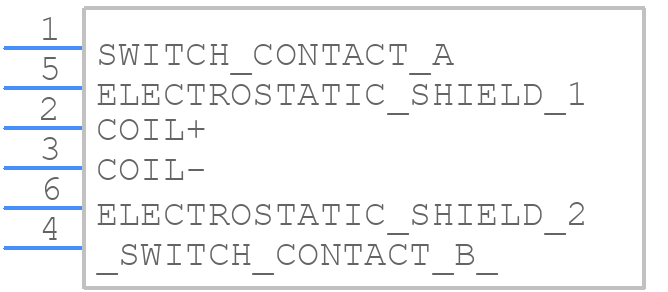

Use the download button to access the 9002-12-11 schematic symbol and PCB footprint.
