901-10385 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

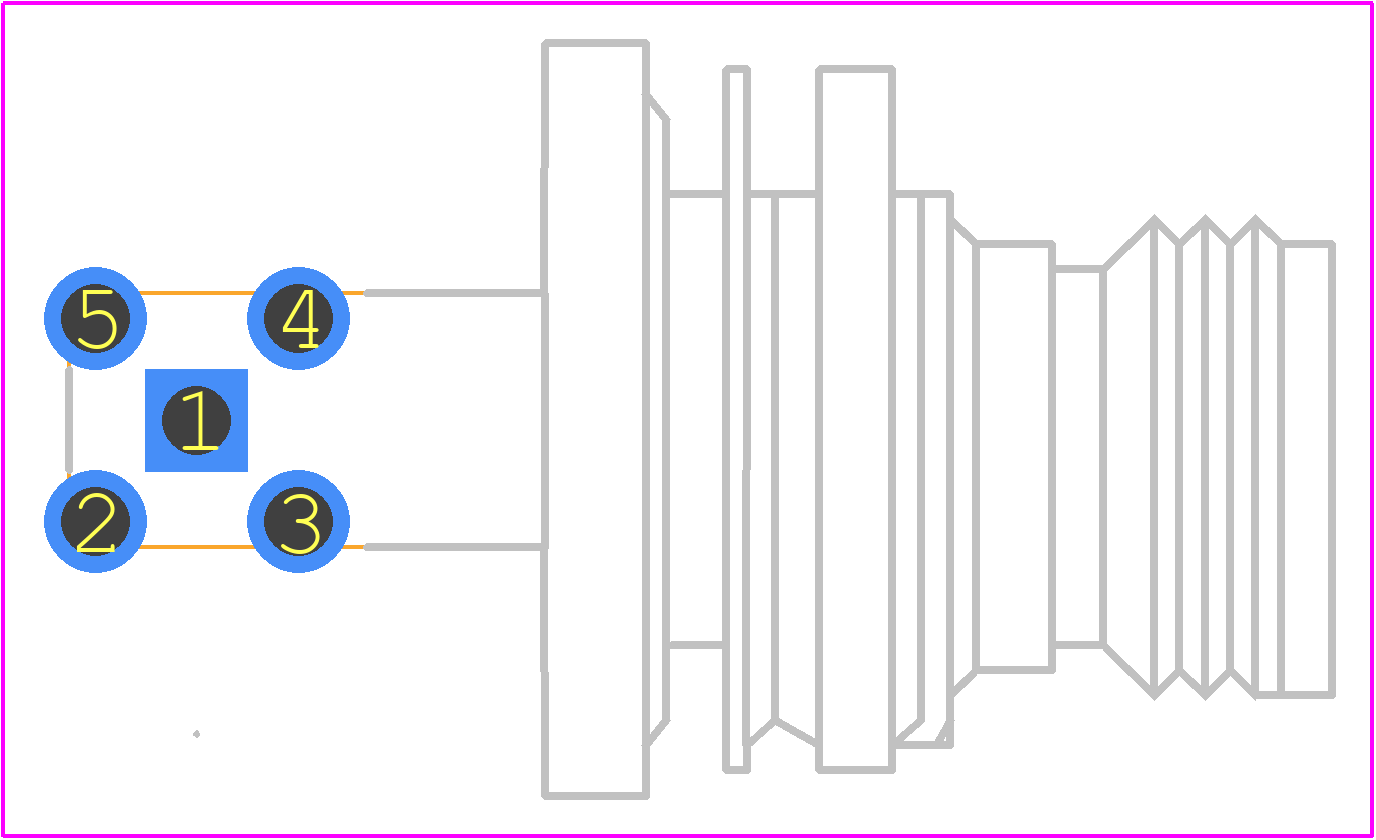

901-10385 - Amphenol PCB footprint - Other - Other - 901-10385-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 901-10385
Part Number 901-10385
Manufacturer Amphenol
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 901-10385-1
Released Date May 29, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

901-10385 Details

Manufacturer Part Number:
901-10385
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Amphenol Corporation
YTEOL:
8
Body Depth:
0.576 inch
Body/Shell Style:
JACK
Characteristic Impedance:
50 Ω
Connector Type:
RF SMA CONNECTOR
Contact Gender:
FEMALE
Contact Style:
COAX
Coupling Type:
THREADED
Insulator Material:
POLYTETRAFLUOROETHYLENE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number of Ports:
1
Operating Frequency-Max:
3 GHz
Operating Temperature-Max:
165 °C
Operating Temperature-Min:
-65 °C
Panel Mount:
YES
Shell Finish:
GOLD
Shell Material:
BRASS
Termination Type:
SOLDER
Total Number of Contacts:
1
VSWR:
1.3

901-10385 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4-6 in-lbs). However, it's always best to consult the specific application requirements and the datasheet for the most up-to-date information.
Yes, the 901-10385 connector is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-5015, which includes vibration testing. However, it's essential to ensure that the connector is properly mounted and secured to the PCB or panel to maintain its integrity.
The operating temperature range for the 901-10385 connector is -55°C to 125°C (-65°F to 257°F). However, it's crucial to note that the temperature range may vary depending on the specific application and the materials used in the connector.
The 901-10385 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and Amphenol's environmental testing documentation to ensure the connector meets the specific requirements of your application.
The 901-10385 connector is designed for PCB mounting, but it can also be used with a panel mount. However, you'll need to ensure that the panel mount is compatible with the connector's dimensions and meets the required specifications.

Trust Checks

Community Provided

System Verified

Community Approved

901-10385 Overview

Use the download button to access the 901-10385 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 901-1, or try a keyword search, such as RF SMA/SSMA Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
