90147-1116 - Molex

Description: Headers & Wire Housings C-Grid PCB Conn SR V onn SR Vt Tn-A 16Ckt

Download 90147-1116 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
90147-1116 - Molex - PCB symbol
click to zoom
PCB Footprints

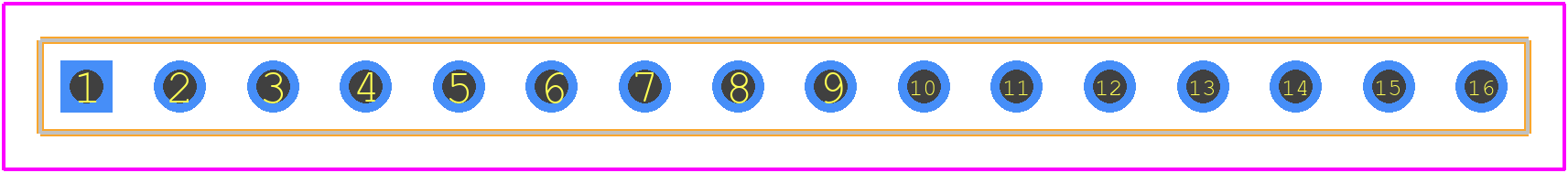

90147-1116 - Molex PCB footprint - Other - Other - 90147-1116-1
click to zoom
3D Models
90147-1116 - Molex - 3D model - Other - 90147-1116-1
click to zoom

90147-1116 Details

  • Manufacturer Part Number:

    90147-1116

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Additional Feature:

    C-GRID

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.335 inch

  • Body Length:

    1.6 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    2.9468 N

  • Insulation Resistance:

    5000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

90147-1116 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 90147-1116 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 90147-1116 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with the 90147-1116 connector. However, it's crucial to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
  • Yes, it's essential to follow proper PCB layout guidelines when using the 90147-1116 connector. Ensure the PCB is designed with sufficient clearance around the connector, and the connector's pins are aligned with the PCB's through-holes. Additionally, consider the thermal management and heat dissipation requirements for the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

90147-1116 Overview

Use the download button to access the 90147-1116 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 90147, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
