Part Image

90151-2120 - Molex

Description: Headers & Wire Housings 20CKT VERT DR PCB

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

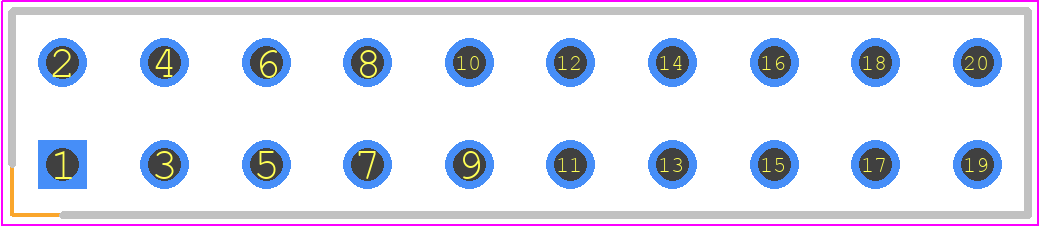

90151-2120 - Molex PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 90151-2120
click to zoom

3D Models

90151-2120 - Molex  - 3D model - Header, Receptacle - Straight PTH Box - 90151-2120
click to zoom

90151-2120 Details

  • Manufacturer Part Number:

    90151-2120

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Indonesia, Ireland, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    18 Weeks, 4 Days

  • Manufacturer:

    Molex

  • Risk Rank:

    1.86

  • Samacsys Modified On:

    2022-06-14 21:08:09

  • YTEOL:

    9.1

  • Additional Feature:

    C-GRID III

  • Body Breadth:

    0.2 inch

  • Body Depth:

    0.335 inch

  • Body Length:

    1 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    350VDC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    3.0024 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    160u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Reliability:

    COMMERCIAL

  • Subcategory:

    Headers and Edge Type Connectors

  • Terminal Length:

    0.114 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .1946 N

Trust Checks

Expert Contribution
System Verified
Community Approved
Sponsored

90151-2120 Overview

Use the download button to access the 90151-2120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 90151, or try a keyword search, such as Headers and Edge Type Connectors
