90152-2130 - Molex

Description: Headers & Wire Housings C-Grid PCB Conn DR H n DR Horz Sn-A 30Ckt ,,

Download 90152-2130 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
90152-2130 - Molex - PCB symbol
click to zoom
PCB Footprints

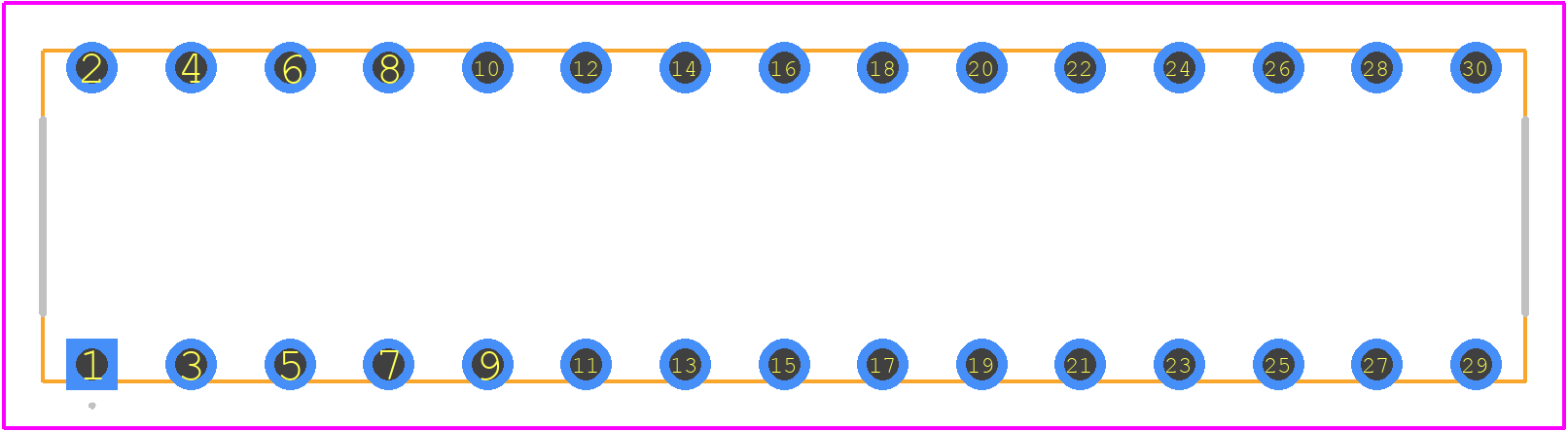

90152-2130 - Molex PCB footprint - Other - Other - 90152-2130-3
click to zoom
3D Models
90152-2130 - Molex - 3D model - Other - 90152-2130-3
click to zoom

90152-2130 Details

  • Manufacturer Part Number:

    90152-2130

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Ireland, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Body Breadth:

    0.23 inch

  • Body Depth:

    0.335 inch

  • Body Length:

    1.5 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    7.62 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

90152-2130 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 90152-2130 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 90152-2130 connector has a IP67 rating, which means it can withstand temporary immersion in water and is suitable for outdoor or harsh environment applications. However, it's essential to ensure proper sealing and protection of the connector to maintain its IP67 rating.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. It's recommended to consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • The 90152-2130 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

90152-2130 Overview

Use the download button to access the 90152-2130 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 90152, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
