908-22101B - Amphenol

Description: RF Connectors / Coaxial Connectors 50 OHM MMCX

Download 908-22101B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

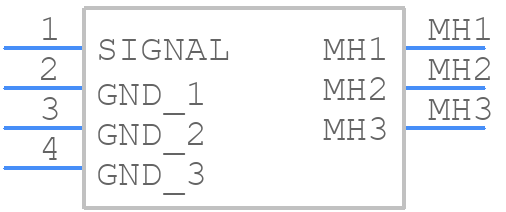

908-22101B - Amphenol - PCB symbol
click to zoom
PCB Footprints
908-22101B - Amphenol PCB footprint - Other - Other - 908-22101B-7
click to zoom
3D Models
908-22101B - Amphenol - 3D model - Other - 908-22101B-7
click to zoom

908-22101B Details

  • Manufacturer Part Number:

    908-22101B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.5

  • Additional Feature:

    INSERTION LOSS MAX AT: 1 GHZ

  • Body Breadth:

    0.17 inch

  • Body Depth:

    0.142 inch

  • Body Diameter:

    0.13 inch

  • Body Length:

    0.17 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF MMCX CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    COAX

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Loss:

    0.245 dB

  • Insulation Resistance:

    500000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Frequency-Max:

    6 GHz

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Shell Finish:

    GOLD

  • Shell Material:

    BRASS

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    1

  • VSWR:

    1.4
