91228-3002 - Molex

Description: Molex 91228 Series 6 Way Push/Push SIM Card Connector with Solder Termination

Download 91228-3002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
91228-3002 - Molex - PCB symbol
click to zoom

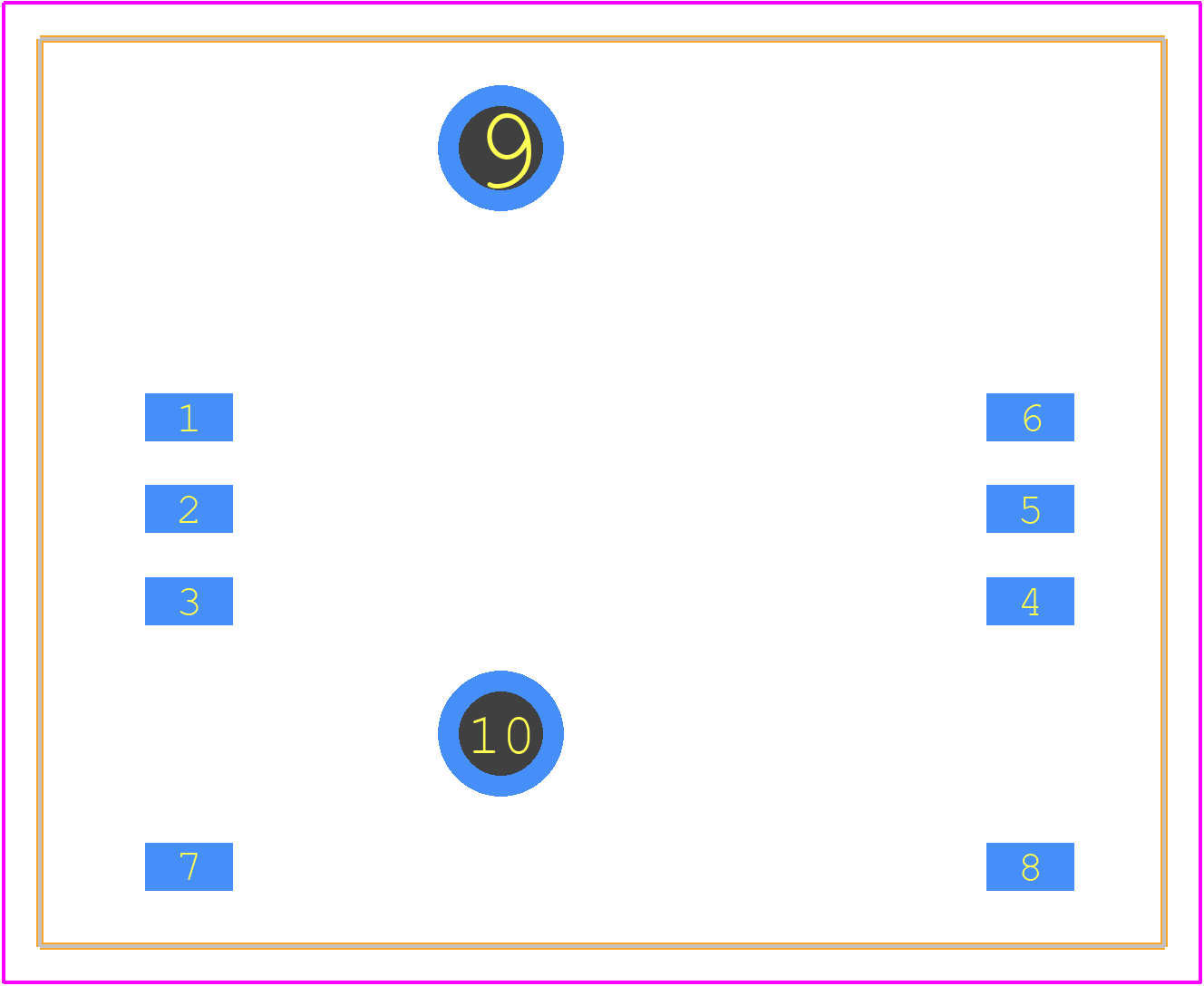

PCB Footprints
91228-3002 - Molex PCB footprint - Other - Other - 91228-3002
click to zoom
3D Models
91228-3002 - Molex - 3D model - Other - 91228-3002
click to zoom

91228-3002 Details

  • Manufacturer Part Number:

    91228-3002

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.118 inch

  • Body Length:

    0.984 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    GOLD (4)

  • Contact Finish Termination:

    BRIGHT TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    STAINLESS STEEL

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Durability:

    5000 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    22.86 mm

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

91228-3002 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 912283002 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 912283002 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and plating may not be suitable for extreme environmental conditions, such as high temperatures or corrosive environments.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 912283002 connector. However, it's essential to ensure the wire size and insulation diameter are compatible with the connector's terminal design and wire retention system to prevent damage or electrical issues.
  • Yes, it's essential to follow proper PCB design and layout guidelines for the 912283002 connector. Ensure the PCB footprint matches the connector's dimensions, and provide adequate clearance around the connector to prevent interference with other components. Additionally, consider the connector's pinout and signal integrity when designing the PCB layout.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

91228-3002 Overview

Use the download button to access the 91228-3002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 91228, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
