The recommended torque for the screw terminals is typically between 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm), but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
Yes, the contacts are gold-plated, and the typical plating thickness is 0.000015 inches (0.38 microns) to 0.000030 inches (0.76 microns) per MIL-G-45204, but it's best to verify with the manufacturer for specific information.
The operating temperature range for the 917-47-104-41-005000 connector is typically -55°C to 125°C, but it's essential to check the manufacturer's specifications and application notes for specific temperature ratings and any derating factors.
The 917-47-104-41-005000 connector is designed to meet the requirements of MIL-STD-202, but it's crucial to evaluate the specific application's vibration and shock requirements and consult with the manufacturer's technical support to ensure the connector meets those demands.
The 917-47-104-41-005000 connector is designed to meet the requirements of MIL-STD-202, which includes humidity and moisture testing, but it's essential to evaluate the specific application's environmental conditions and consult with the manufacturer's technical support to ensure the connector meets those demands.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
917-47-104-41-005000 Overview

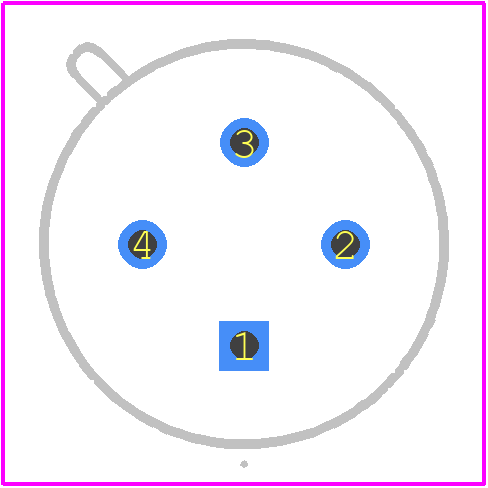

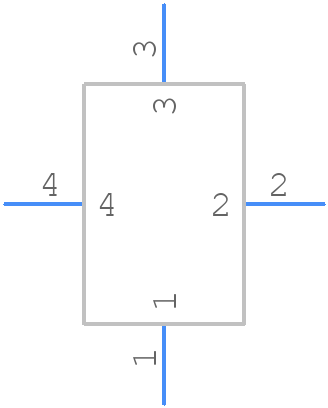

Use the download button to access the 917-47-104-41-005000 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 917-4,
or try a keyword search, such as Sockets and Chip Carriers
