9173B-01CS08LF - Renesas Electronics

Description: The 9173B provide the analog PLL circuit blocks to implement a frequency multiplier. Because the device is configured to use an external divider in the PLL clock feedback path, a large divider can be used to result in a large frequency multiplication ratio. This is useful when using a low frequency input clock to generate a high frequency output clock. The 9173B contains a phase detector, charge pump, loop filter, and voltage-controlled oscillator (VCO). The 674-01 can be used as the external feedback divid

Download 9173B-01CS08LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

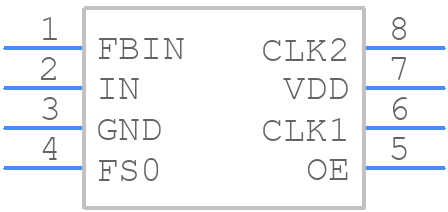

9173B-01CS08LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9173B-01CS08LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8
click to zoom
3D Models
9173B-01CS08LF - Renesas Electronics - 3D model - Small Outline Packages - DCG8
click to zoom

9173B-01CS08LF Details

  • Manufacturer Part Number:

    9173B-01CS08LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    75 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    1 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

9173B-01CS08LF Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use thermal interface material and a heat sink if possible.
  • Use a clock frequency within the recommended range (up to 20 MHz). Ensure proper signal termination, and consider using a SPI bus repeater or buffer for longer cable lengths. Implement error detection and correction mechanisms in your firmware.
  • Power up the device in the following sequence: VCC, AVCC, and then DVCC. Ensure a monotonic power ramp-up with a slew rate of 1-10 mV/μs to prevent latch-up and damage.
  • Use the device's power-down modes (e.g., IDLE, SLEEP) and adjust the clock frequency according to your application's requirements. Consider using a power gating technique and optimizing your firmware to minimize active time.
  • Handle the device by the body or use an anti-static wrist strap. Ensure the PCB and components are properly grounded. Use ESD-protective packaging and follow standard ESD handling procedures during assembly and testing.
