917786-1 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, AMP Signal Double Lock

Download 917786-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
917786-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

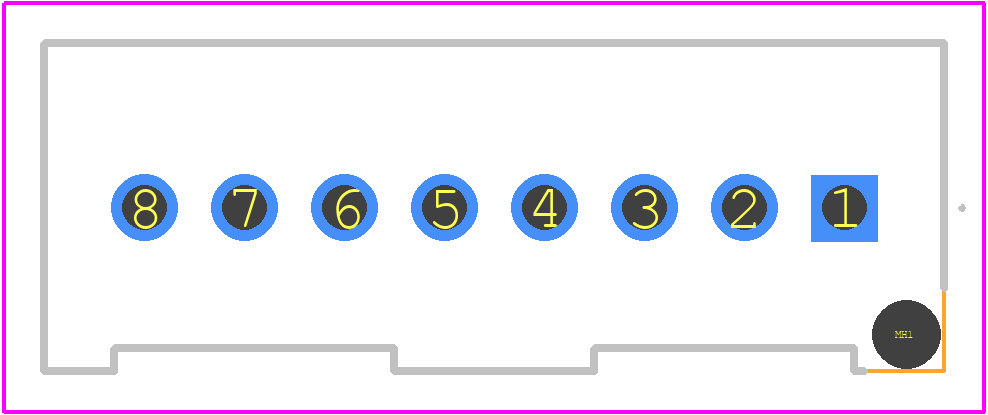

917786-1 - TE Connectivity PCB footprint - Other - Other - 917786-1-2
click to zoom
3D Models
917786-1 - TE Connectivity - 3D model - Other - 917786-1-2
click to zoom

917786-1 Details

  • Manufacturer Part Number:

    917786-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.86

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body Breadth:

    0.32 inch

  • Body Depth:

    0.38 inch

  • Body Length:

    0.88 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Information:

    917692-1

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    31.49u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Shell Material:

    GLASS FILLED POLYAMIDE66

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

917786-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). This information can be found in the TE Connectivity application notes or by consulting with their technical support team.
  • Yes, the 917786-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and securement to prevent damage or disconnection.
  • The 917786-1 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor use or exposure to harsh environments. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional environmental protection.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge wire. However, you should ensure that the wire gauge you choose meets the connector's minimum and maximum wire size specifications and that the wire is compatible with the connector's materials and design.
  • To ensure reliable connections and prevent wire damage, follow proper installation procedures, such as using the correct wire stripping length, applying the recommended torque, and avoiding over-tightening or under-tightening the screw terminals. Additionally, use a wire gauge that meets the connector's specifications and is compatible with the connector's materials.
