Part Image

91A2A-B28-D15/D15L - Bourns

Description: 10k Ohm 2 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W PC Pins

Download 91A2A-B28-D15/D15L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

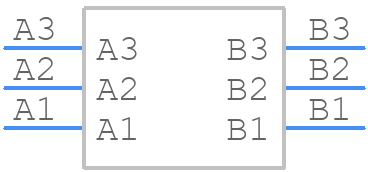

Symbol
91A2A-B28-D15/D15L - Bourns - PCB symbol
click to zoom

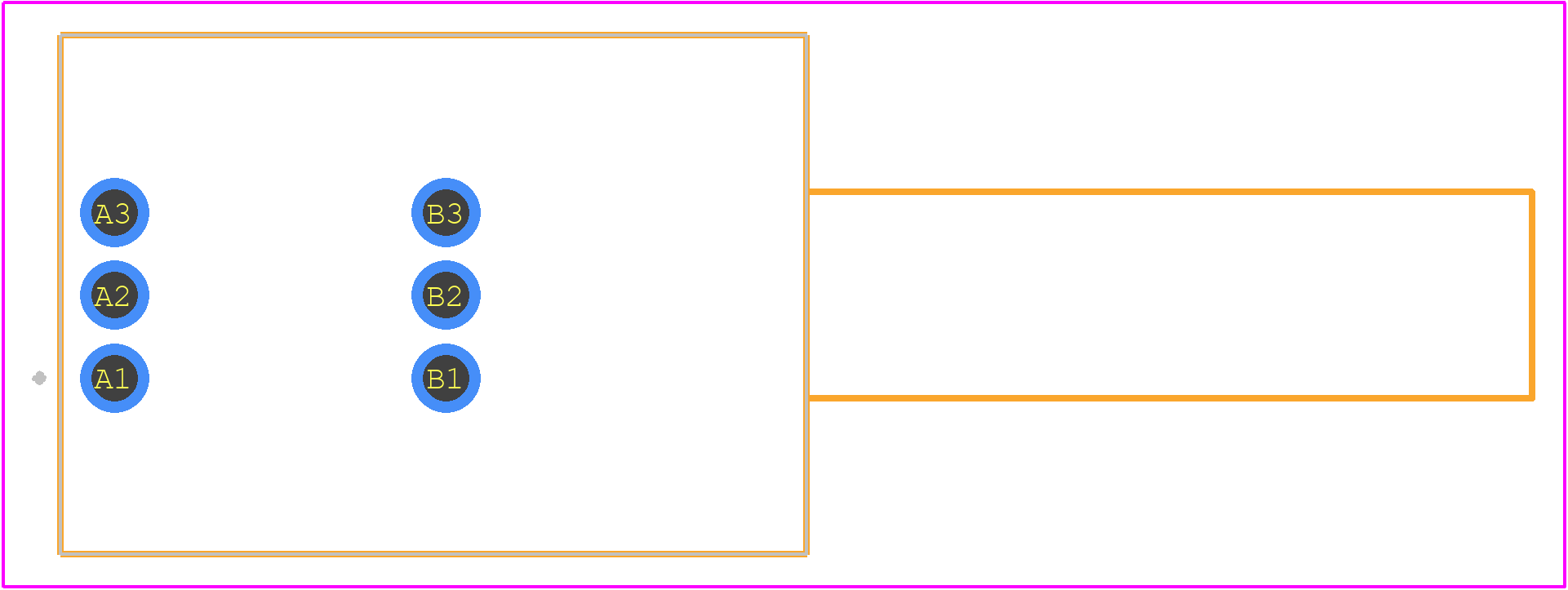

PCB Footprints
91A2A-B28-D15/D15L - Bourns PCB footprint - Other - Other - 91A2A-B28-D15/D15L-2
click to zoom
3D Models
91A2A-B28-D15/D15L - Bourns - 3D model - Other - 91A2A-B28-D15/D15L-2
click to zoom

91A2A-B28-D15/D15L Details

  • Manufacturer Part Number:

    91A2A-B28-D15/D15L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Single Turn

  • JESD-609 Code:

    e3

  • Lead Length:

    15.29 mm

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    17.45 mm

  • Package Length:

    22.86 mm

  • Package Style:

    Panel Mount

  • Package Width:

    15.88 mm

  • Rated Power Dissipation (P):

    0.5 W

  • Resistance:

    10000 Ω

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    225 deg

  • Size Code:

    6390

  • Surface Mount:

    NO

  • Technology:

    CONDUCTIVE PLASTIC

  • Temperature Coefficient:

    1000 ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Tolerance:

    20%

91A2A-B28-D15/D15L Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central grounding point and minimal track lengths is recommended to reduce electromagnetic interference (EMI) and ensure optimal performance.
  • Ensure proper thermal management by providing adequate heat sinking and airflow, and consider derating the component's power rating according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage transient is 1.5 times the rated voltage for a duration of 100ms, as specified in the datasheet. Exceeding this limit may damage the component.
  • Yes, the 91A2A-B28-D15/D15L is suitable for high-frequency applications up to 1MHz. However, ensure that the component is properly decoupled and that the PCB layout is optimized for high-frequency operation.
  • Start by verifying the component's voltage and current ratings, then check for proper PCB layout, decoupling, and thermal management. Use oscilloscope measurements to identify any voltage or current anomalies.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

91A2A-B28-D15/D15L Overview

Use the download button to access the 91A2A-B28-D15/D15L schematic symbol, PCB footprint, and 3D model.
