929665-04-36-I footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

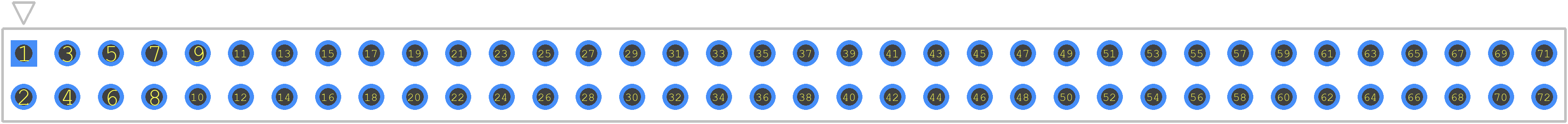

929665-04-36-I - 3M PCB footprint - Other - Other - 3M_929665-04-36-I

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 929665-04-36-I
Part Number 929665-04-36-I
Manufacturer 3M
Pin Count 72
Part Category Connector
Package Category Other
Footprint Name Other - 3M_929665-04-36-I
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

929665-04-36-I Details

Manufacturer Part Number:
929665-04-36-I
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
5 Weeks
Manufacturer:
3M Interconnect
YTEOL:
9.1
Additional Feature:
3M
Body Breadth:
0.215 inch
Body Length:
3.598 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
GOLD OVER NICKEL
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
1500VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
5000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
10u inch
Rated Current (Signal):
2.5 A
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
72
UL Flammability Code:
94V-0

929665-04-36-I Frequently Asked Questions (FAQs)

The recommended torque for mating and unmating the 929665-04-36 connector is typically between 0.5 to 1.5 Nm (4.4 to 13.3 in-lbs), but it's best to consult the specific application notes or contact 3M Interconnect for precise guidance.
The 929665-04-36 connector is designed to meet the requirements of various industries, including automotive, aerospace, and industrial. While it can withstand some level of vibration, it's essential to consult the datasheet and application notes to ensure it meets the specific environmental requirements of your project.
The 929665-04-36 connector is designed for signal integrity and can support high-speed data transmission up to several Gbps, depending on the specific application and cable assembly. However, it's crucial to consult the datasheet and application notes to ensure the connector meets the specific requirements of your high-speed application.
The 929665-04-36 connector is designed to be compatible with automated assembly and wire termination processes. However, it's recommended to consult with 3M Interconnect or a qualified assembly partner to ensure the connector meets the specific requirements of your manufacturing process.
The lead time and minimum order quantity for the 929665-04-36 connector can vary depending on the region, distribution channel, and production capacity. It's best to contact 3M Interconnect or an authorized distributor for the most up-to-date and accurate information.
