929715-03-36-I footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

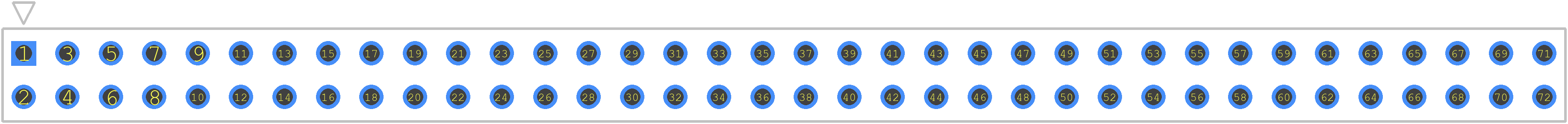

929715-03-36-I - 3M PCB footprint - Other - Other - 3M_929715-03-36-I

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 929715-03-36-I
Part Number 929715-03-36-I
Manufacturer 3M
Pin Count 72
Part Category Connector
Package Category Other
Footprint Name Other - 3M_929715-03-36-I
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

929715-03-36-I Details

Manufacturer Part Number:
929715-03-36-I
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
5 Weeks
Manufacturer:
3M Interconnect
YTEOL:
9.1
Additional Feature:
3M
Body Breadth:
0.215 inch
Body Length:
3.598 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
GOLD OVER NICKEL
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
1500VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
5000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
10u inch
Rated Current (Signal):
2.5 A
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
72
UL Flammability Code:
94V-0

929715-03-36-I Frequently Asked Questions (FAQs)

The recommended torque is typically between 0.5 to 1.5 Nm (5-15 in-lbs), but it's best to consult the specific application notes or contact 3M Interconnect support for precise guidance.
Yes, the 929715-03-36-I connector is designed to withstand vibrations and shocks, but it's essential to ensure proper mounting and screw torque to maintain reliability. Consult the datasheet and application notes for specific vibration testing and ratings.
The 929715-03-36-I connector has a rated operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the specific application and potential thermal stresses. Consult the datasheet and application notes for temperature derating and guidance.
The 929715-03-36-I connector is designed for standard PCB thicknesses (1.57 mm or 0.062 in). Using it with non-standard thicknesses may affect reliability and performance. Consult 3M Interconnect support or application notes for guidance on custom PCB thicknesses.
It's recommended to follow the IPC-J-STD-001 guidelines for cleaning and handling of electronic components. Avoid using harsh chemicals, and instead, use a soft brush and a mild cleaning solution to remove contaminants. Consult the datasheet and application notes for specific cleaning recommendations.

Trust Checks

System Verified

929715-03-36-I Overview

Use the download button to access the 929715-03-36-I schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 92971, or try a keyword search, such as Headers and Edge Type Connectors
