929834-01-36-RK footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

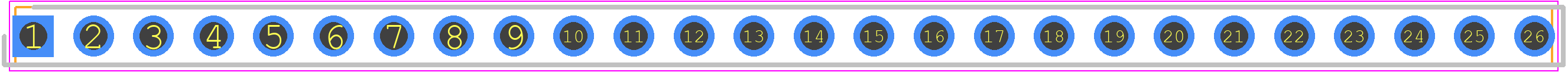

929834-01-36-RK - 3M PCB footprint - Header, Vertical - Header, Vertical - 929834-01-36-RK_A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 929834-01-36-RK
Part Number 929834-01-36-RK
Manufacturer 3M
Pin Count 26
Part Category Link (Jumper)
Package Category Header, Vertical
Footprint Name Header, Vertical - 929834-01-36-RK_A
Released Date Oct 6, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

929834-01-36-RK Details

Manufacturer Part Number:
929834-01-36-RK
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
5 Weeks
Manufacturer:
3M Interconnect
YTEOL:
9.1
Additional Feature:
3M
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
MATTE TIN OVER NICKEL
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
36
UL Flammability Code:
94V-0

929834-01-36-RK Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 929834-01-36-RK is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The operating temperature range for the 929834-01-36-RK is -40°C to 125°C (-40°F to 257°F).
Yes, the 929834-01-36-RK is designed to be resistant to moisture and chemicals, but it's recommended to follow proper sealing and protection guidelines to ensure reliability.
The 929834-01-36-RK is designed for use with specific cable types and sizes. Consult the datasheet or contact 3M Interconnect for guidance on compatible cable options.

Trust Checks

Community Provided

System Verified

Community Approved

929834-01-36-RK Overview

Use the download button to access the 929834-01-36-RK schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 92983, or try a keyword search, such as Headers and Edge Type Connectors
