929836-01-36-RK - 3M

Description: 3M™ Pin Strip Header Single and Dual Row .100”, .235”/.318” Mating Length, Straight & Right Angle, Solder Tails

Download 929836-01-36-RK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
929836-01-36-RK - 3M - PCB symbol
click to zoom
PCB Footprints

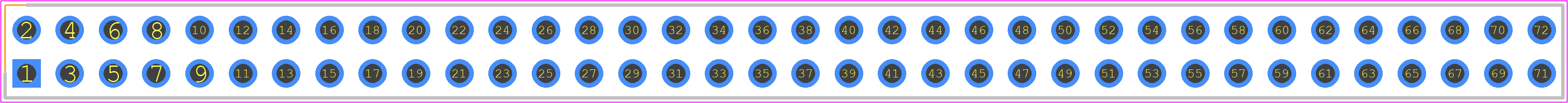

929836-01-36-RK - 3M PCB footprint - Header, Vertical - Header, Vertical - 929836-01-36-RK(8.713mm)
click to zoom
3D Models
929836-01-36-RK - 3M - 3D model - Header, Vertical - 929836-01-36-RK(8.713mm)
click to zoom

929836-01-36-RK Details

  • Manufacturer Part Number:

    929836-01-36-RK

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.1

  • Additional Feature:

    3M

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    72

  • UL Flammability Code:

    94V-0

929836-01-36-RK Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks on the 929836-01-36-RK connector.
  • Yes, the 929836-01-36-RK connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
  • The 929836-01-36-RK connector is designed to operate in a temperature range of -40°C to 125°C and can withstand high-humidity environments, but it's recommended to follow the manufacturer's guidelines for environmental testing and to ensure proper sealing and protection.
  • The 929836-01-36-RK connector is designed to be compatible with other mating connectors from 3M Interconnect, but compatibility with connectors from other manufacturers is not guaranteed. It's recommended to consult with the manufacturer or a qualified engineer to ensure compatibility.
  • The recommended cable size and type for use with the 929836-01-36-RK connector is a 24 AWG to 30 AWG cable with a maximum outer diameter of 2.5 mm (0.098 in). It's recommended to consult the manufacturer's guidelines for cable selection and preparation.
