The recommended torque for mating and unmating the 929852-01-16-RA connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
Yes, the 929852-01-16-RA connector is designed to withstand high-vibration environments. It has a ruggedized design and is tested to meet the requirements of various industry standards, including IEC 61373 and EN 61373, for vibration and shock resistance.
The 929852-01-16-RA connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels (up to 95% RH). However, it's crucial to consult the datasheet and application notes for specific environmental requirements and any necessary derating or special considerations.
The 929852-01-16-RA connector is designed for use with 16 AWG to 24 AWG cables. The recommended cable type is a shielded or unshielded twisted pair or multi-conductor cable with a maximum outer diameter of 5.5 mm (0.22 in). Consult the datasheet or application notes for specific cable recommendations and requirements.
Yes, the 929852-01-16-RA connector is designed for automated assembly and wire termination processes. It features a compact design and is compatible with various wire termination methods, including crimping, soldering, and insulation displacement connection (IDC).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
929852-01-16-RA Overview

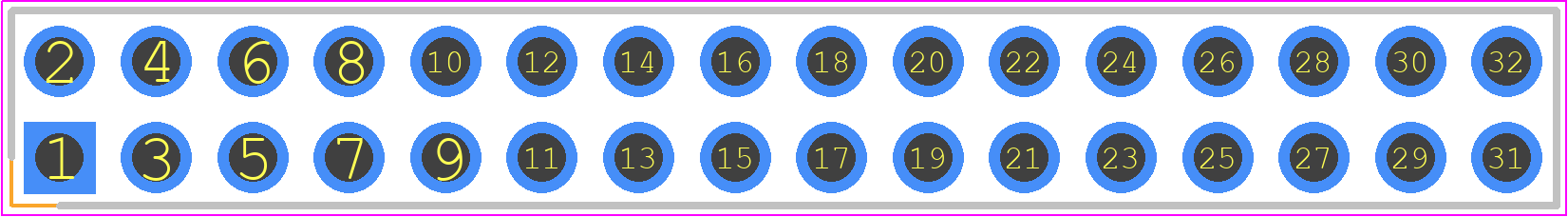

Use the download button to access the 929852-01-16-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 92985,
or try a keyword search, such as Headers and Edge Type Connectors
