93070-4501 - Molex

Description: Appli-Mate RAST 2.5 Header, Vertical, 12 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Positioning Keys None

Download 93070-4501 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
93070-4501 - Molex - PCB symbol
click to zoom
PCB Footprints

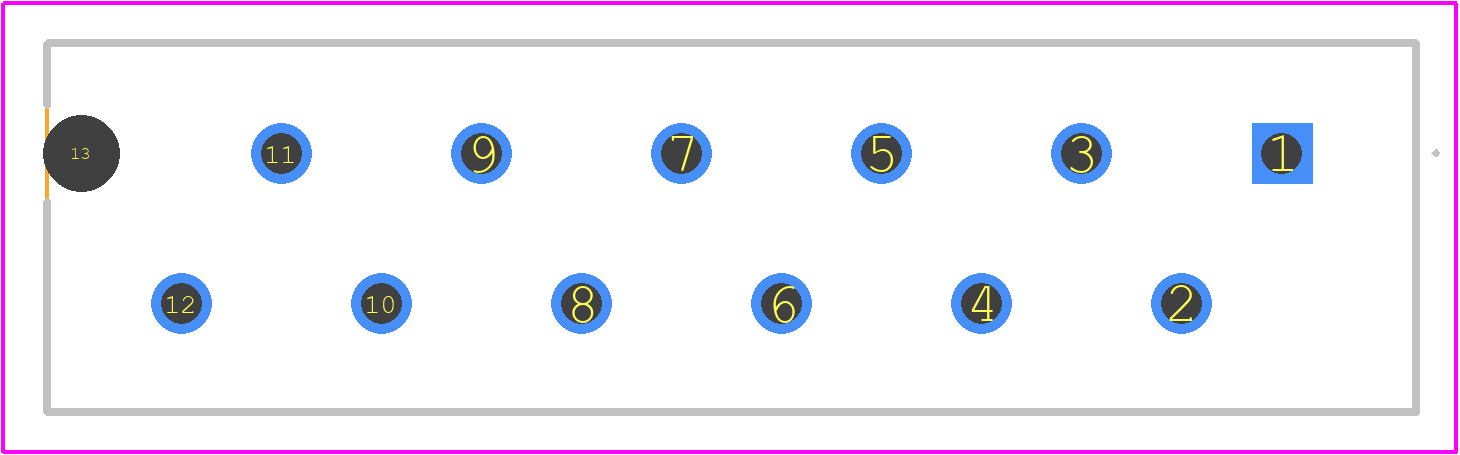

93070-4501 - Molex PCB footprint - Other - Other - 93070-4501-2
click to zoom
3D Models
93070-4501 - Molex - 3D model - Other - 93070-4501-2
click to zoom

93070-4501 Details

  • Manufacturer Part Number:

    93070-4501

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Additional Feature:

    RATED CURRENT(POWER):6A

  • Body Breadth:

    0.362 inch

  • Body Depth:

    0.602 inch

  • Body Length:

    1.346 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    CENTRONIC

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

93070-4501 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 93070-4501 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 93070-4501 connector is designed for indoor use and is not intended for outdoor or harsh environmental applications. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional environmental protection features.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, you should verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult with Molex or a qualified engineer for guidance on using alternative wire sizes.
  • Yes, it's essential to follow proper PCB layout guidelines for the 93070-4501 connector to ensure reliable connections and prevent damage. Consult the Molex application notes or PCB layout guidelines for specific recommendations on pad size, spacing, and orientation.
